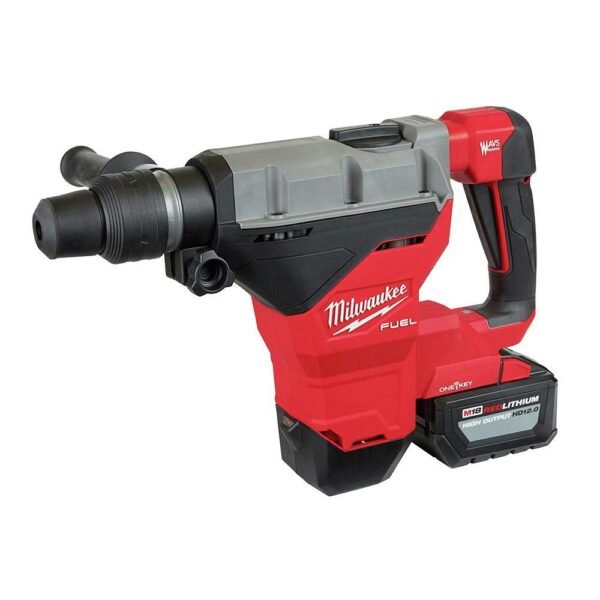

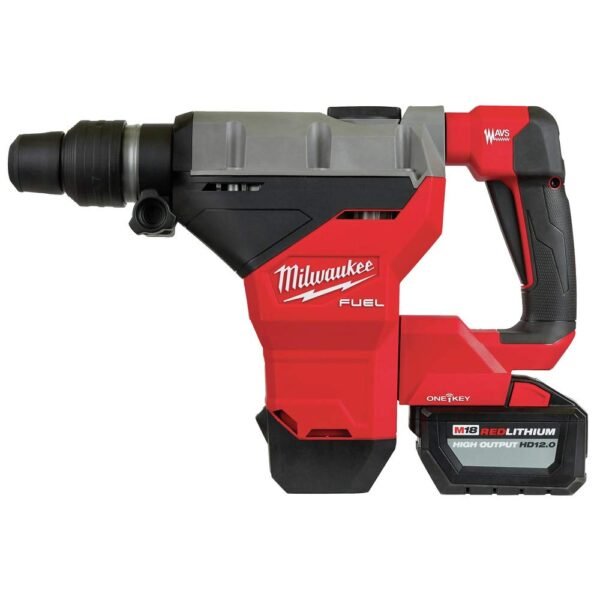

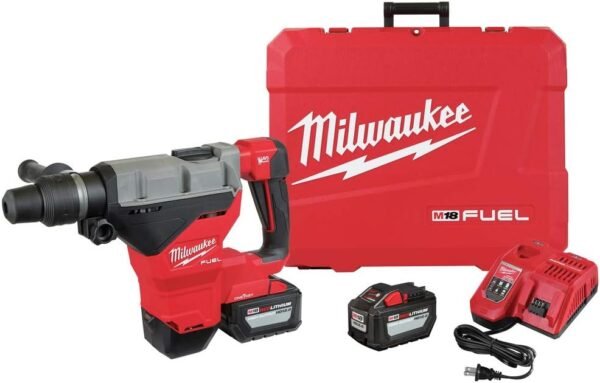

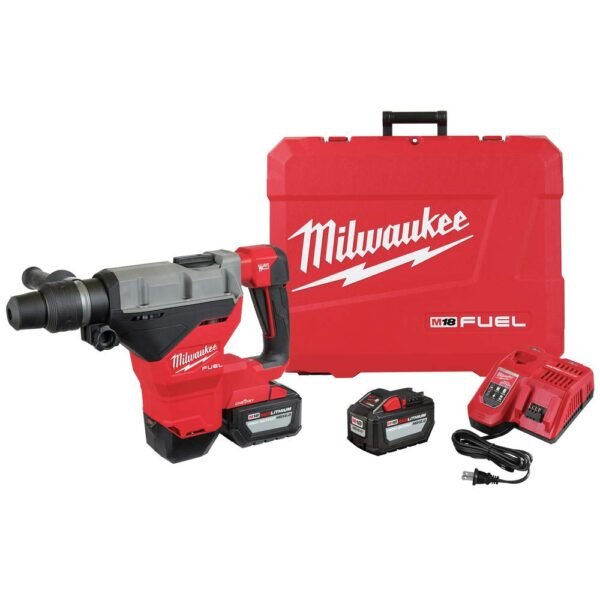

Highlights of the MILWAUKEE M18 FUEL 1-3/4 in. SDS Max Rotary Hammer
The MILWAUKEE M18 FUEL 1-3/4 in. SDS max rotary hammer is an ambitious piece of kit. The cordless design is the headline, promising freedom from tangled cords and limited outlets. Milwaukee rates this tool as matching the power of a 15 A corded rotary hammer in a battery-powered package, which is a bold claim for the class. The supporting numbers are 8.1 ft-lbs of impact energy, a maximum rotational speed of 380 RPM, and a whopping 2,900 BPM (blows per minute), making it a beast for heavy-duty drilling and demolition tasks. The brushless motor ensures efficient power use and durability, which owners rate highly across long sessions of breaking through concrete and masonry. The included two 12.0 Ah batteries mean running dry mid-task is rare, even during intense use. This feature alone makes it stand out in the crowded market of rotary hammers.
- Powerful brushless motor for long-lasting performance
- High impact energy suitable for tough materials

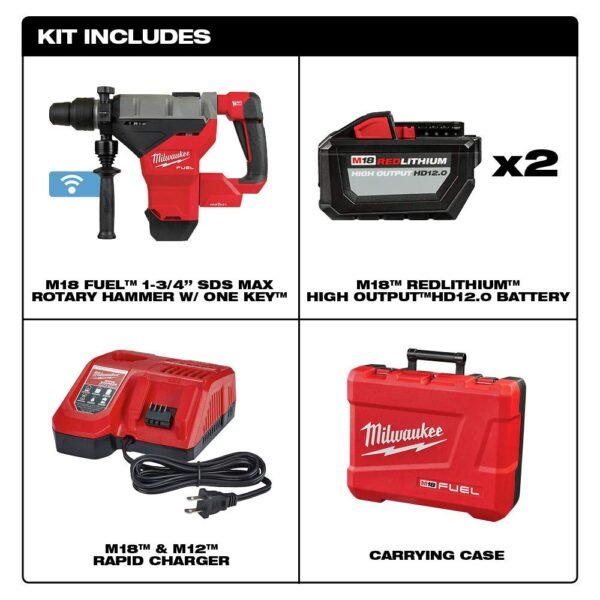

- Cordless convenience with two large capacity batteries
Downsides of This Heavy-Duty Rotary Hammer
Not everything about this rotary hammer lands well, though. For one, the weight, at 43.7 pounds, is substantial. Handling it for extended periods becomes tiring, especially when overhead drilling is involved, and it is not the lightest tool anyone will carry onto a site. The single-speed operation (380 RPM) limits flexibility, with no slower setting for control and no faster one for lighter tasks; buyers who need that range often step down to the lighter Milwaukee 5262-21 with variable speed. Additionally, the price point is on the higher side compared to some competitors, which may make it less attractive to DIYers or casual users. Lastly, the size and bulk of the tool can be a hindrance in tight spaces, so it’s not ideal for all job sites.
- Heavy and cumbersome for prolonged use
- Single speed limits versatility
- Higher cost compared to some alternatives
Performance and Power Delivery
This rotary hammer brings the muscle needed for professional-grade tasks. It drills through concrete, metal, and masonry with ease, and its 1-3/4 inch chuck size handles large drill bits without fuss, though the listing uses that figure as a chuck size when it is really the maximum bit diameter for an SDS-MAX interface. The impact energy of 8.1 foot-pounds means breaking through tough materials is less of a grind than with smaller tools. ONE-KEY technology is integrated into the tool, offering customization and control through an app, which is useful for setting speed limits and tracking tool usage. This smart feature adds a layer of security and productivity that’s not common in every rotary hammer. In terms of torque, the tool maintains consistent power, even under load, which is crucial for maintaining efficiency on the job.
Ergonomics and Handling
Despite its weight, the glass-filled nylon construction helps keep the tool balanced. The grip is solid, and the vibration control reduces fatigue to a degree, though it doesn’t eliminate it entirely. The rubberized handle is a comfort improvement that owners note, but after a while the tool’s heft starts to show, and gloves are a common recommendation for longer projects. The tool dimensions (21.02″ L x 6.4″ W x 16.4″ H) mean it isn’t the most compact, so maneuvering in tight corners or overhead can be challenging for some users. Still, its power-to-weight ratio compares well against corded rotary hammers in the same duty class.
Battery Life and Charging Experience
The inclusion of two 12.0 Ah lithium-ion batteries changes how the tool is used on site. Swapping mid-task stops being a scheduling problem, and having a spare fully charged pack ready cuts downtime significantly. Charging times are reasonable for the capacity, and the batteries hold their charge well over multiple uses. The brushless motor also contributes to the efficient use of battery power, which means longer work sessions without sacrificing performance. Crews already on the M18 platform can share those packs with a lighter unit such as the Milwaukee 2717-20 cordless rotary hammer. This tool is ideal for professionals who need reliability and the ability to work anywhere without being tethered to power cords.
Alternative Offerings and Competitors

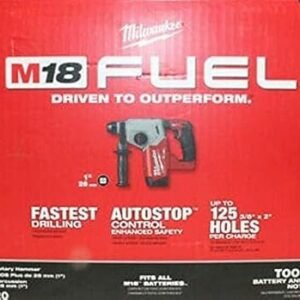

Comparing this rotary hammer to other popular models, such as the DeWalt DCH773X2 or the Bosch RH328VC, highlights some interesting trade-offs. The Milwaukee offers higher impact energy and battery capacity, which delivers better performance on heavy-duty jobs. However, the DeWalt model is lighter and offers variable speed control, which provides more versatility for delicate tasks. Bosch’s model scores well with its vibration control technology and slightly better ergonomics but lacks the battery capacity and raw power of this Milwaukee tool. Inside Milwaukee’s own range, the M18 FUEL 2912-20 rotary hammer is the obvious cross-shop. If power and cordless convenience rank highest on your list, this rotary hammer outshines many rivals, but those prioritizing lightness and speed options might look elsewhere.
Value Assessment: Is It Worth the Investment?
Considering the features and build quality, this rotary hammer justifies its price for users who need a professional-grade, cordless rotary hammer with the power of a corded 15 A tool. The ONE-KEY system adds value by enhancing tool management and security, something less common in similar products. For contractors or serious DIYers who tackle tough materials regularly, the tool’s durability, power, and battery life make it a smart investment. However, occasional users or those on a tighter budget will find better value further down the range of rotary hammers we cover. The high price to quality ratio is evident, but the premium comes with features that genuinely improve work efficiency and safety.
Features and Settings Explored
This rotary hammer doesn’t offer multiple speeds, but its single-speed setting at 380 RPM is balanced for most heavy-duty drilling and chiseling needs. The SDS-MAX chuck system allows quick bit changes, which is a practical advantage on a tool this size. The listing covers impact and rotary-only modes, making it versatile enough for a range of tasks, from drilling into metal (up to 13 mm) to chiseling concrete. The brushless motor technology reduces maintenance needs and improves battery efficiency, which benefits users who rely on the tool daily. Also, the robust construction with glass-filled nylon ensures durability without compromising too much on weight. Where mains power is available all day, the corded Milwaukee 5317-21 rotary hammer answers the same duty class without the battery bill.
This Milwaukee rotary hammer combines power, cordless freedom, and smart technology, making it a solid choice for professionals who demand reliability and efficiency on the job site. Despite some ergonomic drawbacks and a higher price, its performance and features make it stand out among heavy-duty rotary hammers.
