Highlights of the DEWALT 20V MAX SDS Rotary Hammer Drill

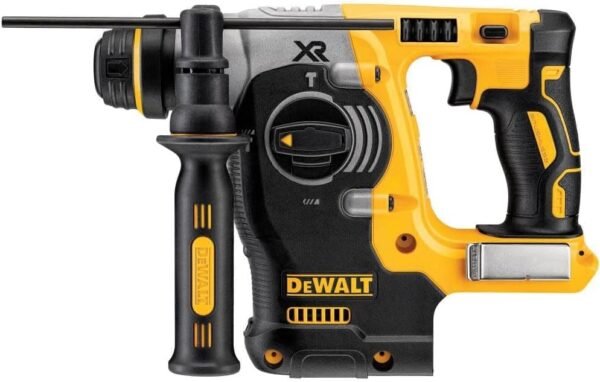

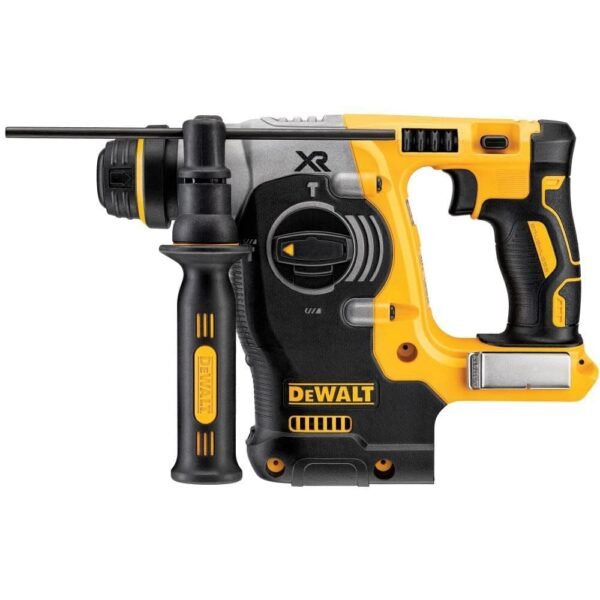

The DEWALT 20V MAX SDS Rotary Hammer Drill, Cordless, 3 Application Modes, Bare Tool Only (DCH273B) is specified as a serious jobsite tool rather than an occasional one. The brushless motor paired with a German-engineered mechanism is rated at 2.1 Joules of impact energy, which is the figure that matters for drilling concrete and masonry. The 3 application modes, Drill, Hammer Drill and Chip, are selected on a rotating dial, an arrangement that keeps mode changes quick and keeps the tool versatile across light drilling and heavy hammering in the same session.
The lightweight design (6.4 pounds) is what keeps it manageable during extended overhead or tight space work. A 360 degree adjustable side handle and depth rod are included, adding stability and control. The SHOCKS ACTIVE VIBRATION CONTROL system is the headline comfort feature, since damping vibration at the handles is what determines whether a long session ends in fatigue. This hammer sits in DEWALT’s PERFORM and PROTECT product line and reaches OSHA Table 1 compliance when paired with the On Board Extractor (DWH303DH), which matters on any site where silica dust rules are enforced.
Drawbacks of This Rotary Hammer
Despite its strengths, the rotary hammer drill has real limits. The battery is not included, so there is an extra purchase for anyone without compatible 20V MAX packs, and both power and runtime depend on which pack goes on the tool. The listing also states a maximum torque rating of 1.5 foot-pounds, and that figure is not credible for an SDS rotary hammer, since even a basic cordless drill exceeds it many times over. It should be read as a data error on the product page rather than a real rating, and the impact energy figure used instead when judging the tool.
The maximum chuck size of 20 millimeters (about 3/4 inch) is a genuine constraint, capping bit diameter and ruling the tool out for larger holes in concrete. Anyone regularly working past that size should be looking at a corded machine such as the DEWALT D25263K SDS hammer. The cordless design gives excellent portability, but runtime is entirely a function of battery capacity, which can interrupt longer or more demanding jobs.
Versatility and Application Modes
The three application modes are the most useful part of the design. Drill mode is the straightforward setting for wood or metal. Hammer Drill mode engages the impact mechanism for masonry. Chip mode, hammering without rotation, covers chiselling and light demolition. Changing modes on the rotating dial takes seconds and needs no additional attachments, which saves time on jobs that move between tasks constantly.
That adaptability makes it a solid choice across construction work such as rod hanging, seismic and safety attachments, cable tray mounting, clamp mounting, and rail mounting. Strut mounting is another natural fit, since the job calls for repeated moderate depth holes rather than sustained heavy demolition, and that is precisely the duty cycle this tool is built for.
Build Quality and Ergonomics
The blend material construction is durable without being bulky. The brushed finish looks professional and helps grip, which counts more than it sounds on a hot day. The dimensions (13″L x 4.2″W x 8.6″H) keep it compact enough to manoeuvre in confined areas, while the 6.4-pound weight balances enough heft for control against comfort over a long shift.
Ergonomically the 360 degree side handle is the standout, allowing multiple grip positions that improve accuracy and reduce fatigue. The depth rod keeps hole depths consistent, which is critical for mounting work. There is no built-in LED light, so dim areas need a separate light source, and anyone who wants a smaller tool for that kind of confined work should compare the DEWALT DCH133B in the same battery family.
Value Proposition
Set against its power output, vibration control, and cordless convenience, this rotary hammer represents solid value for money. It arrives without battery or charger, so starting costs mount for anyone new to the platform. For an owner already inside DEWALT’s 20V MAX system, it slots straight in and adds capability without duplicating hardware.

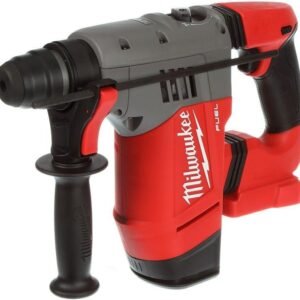

The 3-year limited warranty is reassuring given the work this tool is designed for. Against other cordless rotary hammers at this price, including the Milwaukee M18 Fuel rotary hammer, it holds its position on durability and performance. It is not the cheapest option, but the build and feature set justify the outlay for professionals and serious DIYers who want portability without giving up impact power.
Product Comparisons
Against other cordless rotary hammers from Makita and Bosch, the picture is mixed. The Makita XRH01Z is rated for slightly higher impact energy but carries more weight and less balance in hand, and Makita’s corded HR2641 with anti-vibration is the comparison worth making for anyone not tied to a battery platform. Bosch’s GBH18V-26 delivers strong power and vibration control but is bulkier and costs more. The DEWALT leads on weight balance, vibration reduction, and ease of mode switching.
Competitors often include batteries or chargers, though their tools tend to be heavier or to lack an equivalent of SHOCKS ACTIVE VIBRATION CONTROL. This DEWALT’s compactness and vibration damping make it the more comfortable choice for prolonged use, while chuck size keeps it behind corded rivals on the heaviest work. The trade is easier to judge with comparable rotary hammers lined up beside it.
Positive Features
- Brushless motor ensures efficient power use and longer runtime.
- SHOCKS ACTIVE VIBRATION CONTROL significantly reduces hand fatigue.
- Three distinct modes (Drill, Hammer Drill, Chip) expand versatility.
- Lightweight and compact design enhances maneuverability.
- 360 degree adjustable side handle and depth rod provide excellent stability and precision.
Limitations to Keep in Mind
- Battery not included, adding to overall cost.
- Torque figure on the listing (1.5 foot-pounds) is not usable, so judge the tool on its 2.1 Joule impact energy.
- Chuck size capped at 20 millimeters, limiting bit size options.
- No integrated LED light, which would help in low-light environments.
- Runtime depends entirely on battery capacity, potentially interrupting longer jobs.
The DEWALT 20V MAX SDS Rotary Hammer Drill is a capable cordless solution for a wide span of drilling and chiselling work. Its considered design and vibration control system make it far easier to live with than heavier, more cumbersome tools. The missing battery and the ceiling on bit size mean it suits buyers who prioritise portability and moderate duty hammering over maximum raw power.
