Description
Highlights of the VIAIR 400P Portable Compressor Kit

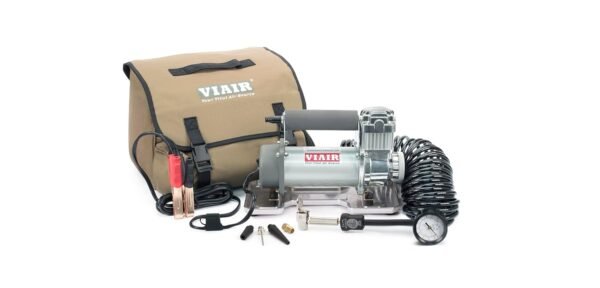

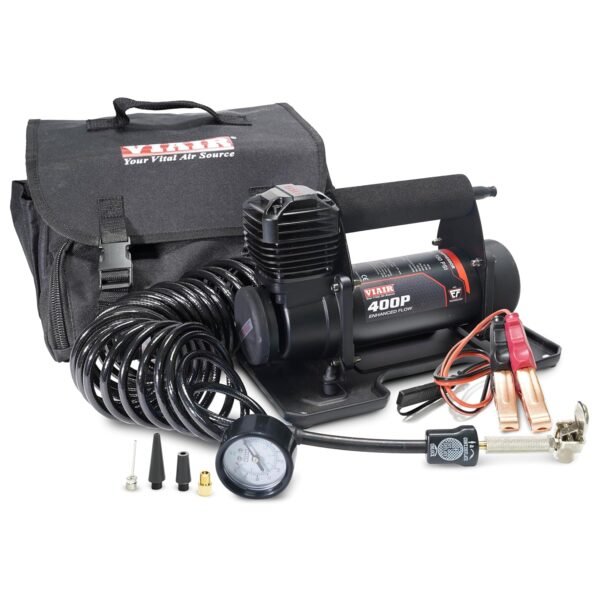

The VIAIR 400P – 40043 Portable Compressor Kit stands out for its robust build and straightforward operation. This 12-volt electric-powered air compressor is engineered for off-road enthusiasts and daily drivers alike, rated to inflate tires up to 35 inches in diameter. The technical detail that matters most is the gearless, permanent magnetic motor, a design with no gear train to wear and therefore no scheduled maintenance. The unit packs into the included deluxe dual-compartment carrying bag, which keeps the hose and clamps with the compressor.
Setup is simple: the heavy-duty battery clamps go straight onto the vehicle battery, the engine runs to support the draw, and the compressor switches on. The 25-foot 5-in-1 inflator/deflator hose with an inline 100 PSI gauge is what allows pressure to be set precisely, which matters for both on-road safety and off-road traction. The figure quoted for a 33-inch tire is about 4 minutes from 15 to 30 PSI, which is quick for a unit this portable. One inconsistency to flag: the kit is rated to a 150 PSI working pressure while the supplied inline gauge only reads to 100 PSI, so higher-pressure work needs a separate gauge.
- Maintenance-free permanent magnetic motor
- High working pressure up to 150 PSI
- Durable and portable carrying case included
Drawbacks Worth Weighing
Despite its strengths, a few points give pause. The maximum duty cycle of 33% at 100 PSI means the compressor runs for about 10 minutes before it needs a cooldown, which becomes a real constraint with multiple tires to fill or one that is completely flat. Planning around that timer is part of owning this unit rather than an occasional inconvenience.
Another downside is the noise level, which is rated at around 74 dB. That is not deafening, but it is loud enough to carry across a campsite or a quiet street. The weight of 10.4 pounds is modest for a compressor of this capability, yet it is still noticeable when the unit is carried on foot rather than left in a vehicle. Lighter cordless options such as the AVID POWER triple power source inflator trade output for that portability.
- Needs cooldown after 10 minutes of continuous use
- Noticeable noise, especially in quiet environments
- Slightly heavier than some ultra-compact models
Versatile Performance Across Vehicle Types
The specification spans a wide range of vehicles. The 35-inch tire rating is the headline for truck and off-road use, and the same kit covers motorcycles and side-by-side ATVs at the other end of the scale. The included Presta valve adapter and multiple inflation tips are what make switching between valve types quick rather than a hunt for adapters. Small tires are well within its range, since the limiting factor there is the volume of air needed rather than the pressure.

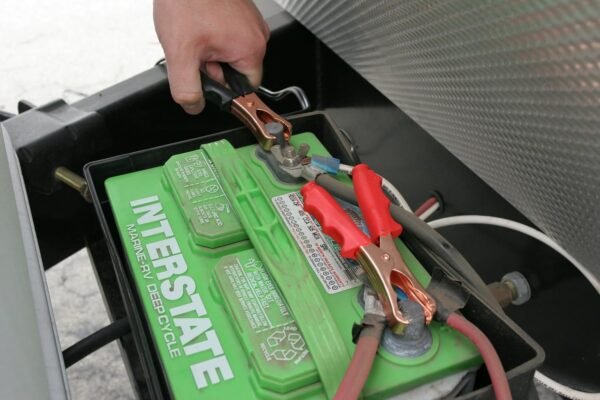

The direct battery connection with alligator clamps is the feature that matters for off-road conditions, because it supplies far more current than a cigarette lighter socket, which is typically fused at 10 to 15 amps. That alone separates this kit from plug-in inflators for anyone running large tires. The thermal overload protector is the backstop that shuts the motor down before heat does damage in tough conditions.
Value Assessment: Is It Worth the Investment?
Weighed on features, the compressor offers a solid value proposition. The combination of portability, power, and durability makes it a working tool rather than an accessory, particularly for owners of trucks, SUVs, or off-road vehicles. The heavy-duty aluminum build and protective sand tray with vibration isolators are what support the higher price, since both target the failure points that kill cheaper units.
The price sits above smaller inflators, but the ability to fill large tires quickly is what is being bought. Against cheaper models that run from a cigarette lighter plug, this kit’s direct battery connection and higher amperage draw mean shorter fill times and fewer thermal shutdowns. For regular off-road driving or trailer towing, that is a sensible investment. Similar rugged units include the Smittybilt 2781 off-road compressor.
Alternative Offerings: Comparing with Popular Competitors
The obvious alternatives are the EPAuto 12V DC Portable Air Compressor and the Viair 85P Portable Compressor. The EPAuto is more budget-friendly but does not match the 400P on raw output or maximum pressure, and its reliance on a cigarette lighter plug is the practical limit with larger tires.
The VIAIR 85P is a reasonable option for smaller tires and lighter duty but sits below the 400P on both maximum working pressure and duty cycle. The 400P’s 150 PSI rating and 35-inch tire capability place it a tier higher for anyone who needs serious inflation capacity. Buyers who want a permanently mounted system rather than a portable one should look at the VIAIR 485C heavy duty compressor.
Against these rivals the 400P leads on power output, versatility, and construction quality, at the cost of size and price. Buyers who never inflate large tires, or who want the smallest possible package, will be adequately served by the lighter models. For off-roaders and truck owners the balance clearly favours the 400P.
User Experience: Everyday and Emergency Use
The same kit covers a wide spread of household jobs. Mountain bike tires benefit from quick inflation and ease of use, with the Presta adapter already in the bag, and the deluxe carrying case is sized to live in an SUV trunk without taking a whole compartment. The inline gauge keeps pressure monitoring on the hose rather than requiring a second tool, which is why the kit reads as a complete package rather than a bare compressor.
The emergency case is where the specification earns its price. A dangerously low trailer tire is exactly the job that a robust 30-amp draw and direct battery connection handle quickly, where a socket-powered inflator would still be working. That combination of fill rate and duty cycle is what makes this a credible roadside tool rather than a top-up device. More options for that role are listed in our portable air compressors section.
Extensive Feature Set Worth Noting
The feature list is built around practicality. The included accessories, such as the 3-piece inflation tip kit and Presta valve adapter, cover most inflation needs from vehicle tires to sports equipment. The 8-foot power cable and 25-foot inflation hose together provide enough reach to work around a vehicle from a single hook-up point.

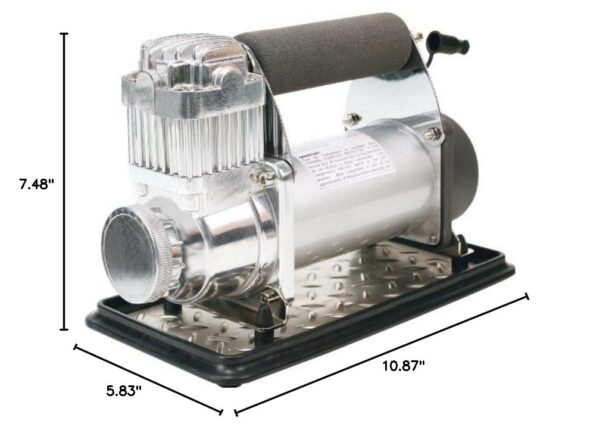

The inline fuse holder and thermal overload protector add two independent safety layers, one electrical and one thermal. Operating temperatures from -40°F to 158°F make it suitable for climates from harsh winters to desert heat. The compact dimensions (approximately 11 x 6 x 7.5 inches) mean it stows on a shelf or in a trunk cubby rather than occupying floor space.
Limitations to Keep in Mind Before Purchase
Despite the strengths, there are real constraints. The duty cycle limitation requires the operator to pace the work rather than run it continuously. The noise level is intrusive during quiet moments outdoors. The weight and size, though justified by the output, work against anyone assembling an ultra-light kit. Automatic systems such as the EZ FLATE MOAB with auto air mode take a different approach to the same job.
Another gripe is the lack of a digital pressure readout, since an analog inline gauge is harder to read in low light or at an awkward angle. It is a minor point for most buyers, though precision seekers will notice it.
- Must monitor duty cycle to prevent overheating
- Noise can be intrusive in peaceful settings
- No digital pressure display for easy reading
Taken together, the specification balances performance, convenience, and build quality against the practical considerations that come with any powerful portable compressor: duty cycle, noise and the space it takes up.
