Description

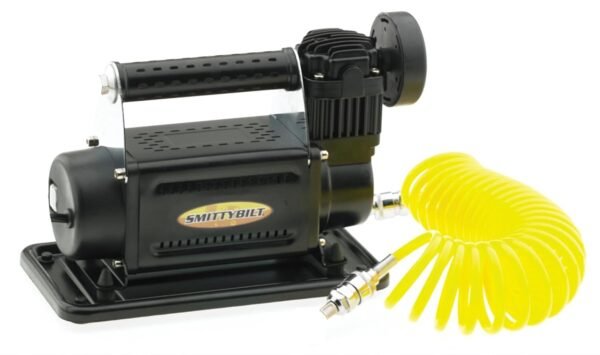

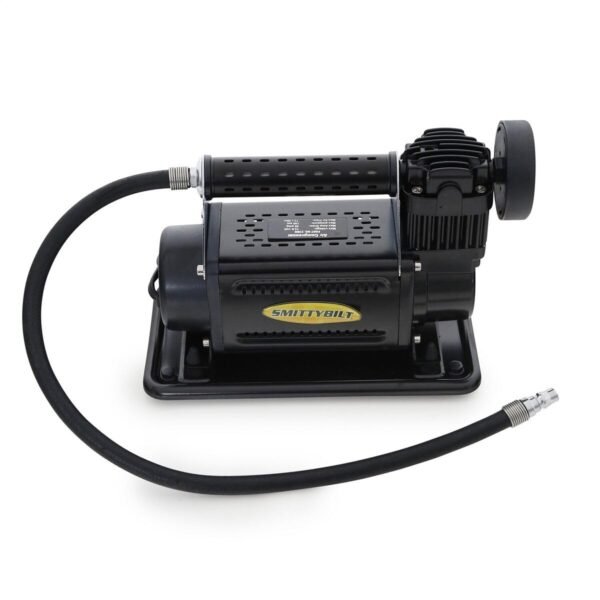

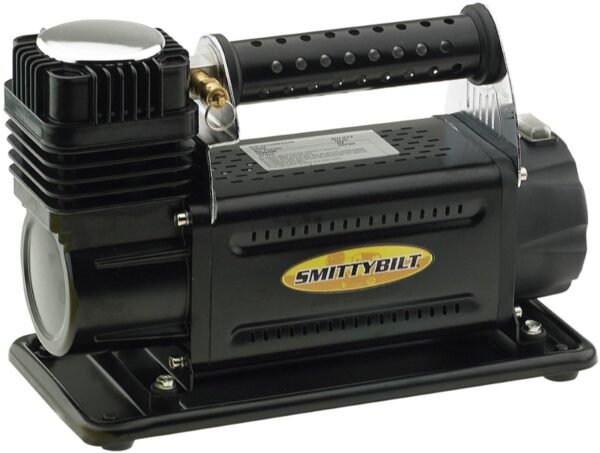

Powerful Performance with the Smittybilt AIR COMPRESSOR 5.65CFM – SB2781

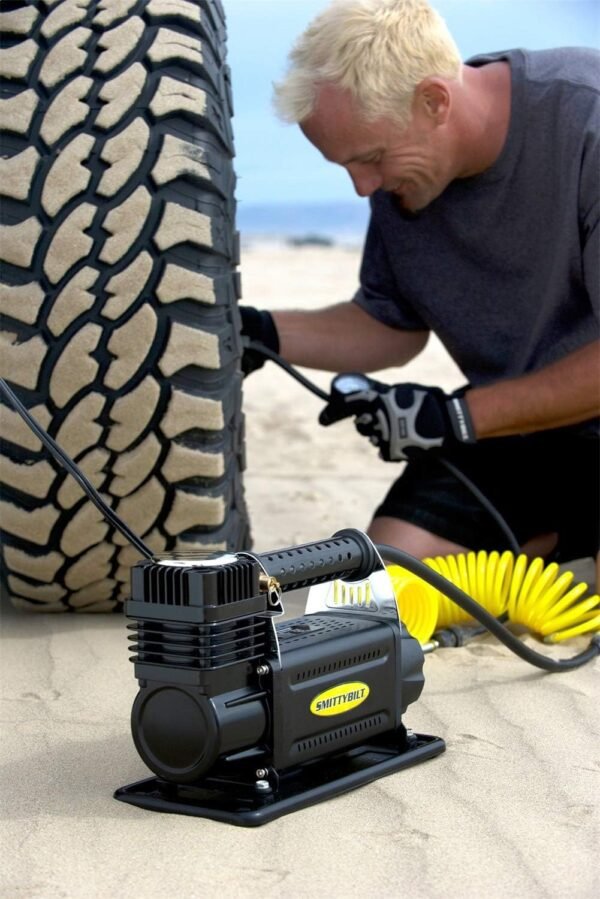

The Smittybilt AIR COMPRESSOR 5.65CFM – SB2781 is built around a 1/3 horsepower oil-less direct drive motor. The number that defines it is the 5.65 CFM air intake, which is high for a 12V portable unit and is what shortens fill times against smaller inflators. That rating is the reason it is specified for airing down a set of off-road tires for trail traction and then bringing them back up to highway pressure without a long wait at each corner. The 30 amp inline fuse is the protective element in the wiring, which matters on a unit that clamps straight to a vehicle battery.
Key Benefits of the Compressor’s Design and Build
The design is portable yet robust, weighing about 20.9 pounds in a metal casing rather than the plastic shells common at this price. The dimensions (16″ L x 12″ W x 11″ H) keep it to a size that fits a trunk or a truck bed box. The quick-release 24-foot coil hose is the practical inclusion, since 24 feet is enough to reach all four tires from one parking position on most vehicles. The automatic shut-off feature guards the motor against overheating during continuous use, which is the failure mode that kills cheap inflators during multi-tire sessions.
Highlights include:
- Integrated 150 PSI pressure gauge which is easy to read and precise.
- Heavy-duty clip connectors for quick, secure battery hook-up.
- A 10-foot power cord that gives decent reach from a vehicle’s battery.
Drawbacks That Are Worth Considering
While the specification is strong in many respects, several limitations stand out. For starters, the noise level runs around 70 dB, which is loud enough to be disruptive in a quiet campground or a residential street. The cord length is generally sufficient but becomes limiting on larger trucks or trailers, where the unit has to be repositioned partway through. There is also a data problem worth raising: the listing gives a 72-liter tank volume, and 72 litres cannot fit inside the stated 16 by 12 by 11 inch case, so confirm the tank figure with the seller before buying on that basis. More options in this class are listed in our portable air compressors section.
Some drawbacks:
- Noise can be intrusive during operation.
- Cord length could be improved for more flexibility.
- The stated tank volume conflicts with the case dimensions, so the figure needs checking.
Versatility That Covers Multiple Uses
This compressor is not limited to tires. Its universal application extends to drilling, air brushing, spraying, and nailing, which makes it useful for home improvement as well as automotive work. The 5.65 CFM rating is enough to keep a pneumatic nailer supplied on intermittent work such as a deck repair. The maximum continuous cycle time of 40 minutes at 40 PSI is the number that sets the limit; longer sessions than that need a cooling break, and the duty cycle drops as pressure rises.
The oil-less motor keeps maintenance to a minimum, which is a significant plus for owners who do not want oil changes in the routine. The auto-thermal cutoff switch is the matching protection, cutting power before heat damages the motor during extended runs. Off-road buyers cross-shopping automatic systems will find a different approach in the EZ FLATE MOAB auto air compressor.
Value Assessment: Is It Worth the Investment?
On the price-to-quality ratio, this compressor offers solid value. Its airflow figure sits above many competitors in the same price range, driven by the 0.33 horsepower motor and the high airflow capacity. The included nylon storage bag is a small but genuine convenience for transport and storage, since the hose and clips travel with the unit rather than loose in a boot.
For off-road driving or DIY projects that need a dependable air source, this product delivers on durability, power, and useful features. It is neither the quietest nor the lightest option in the category, and the specification makes no attempt to claim otherwise.
Product Comparisons: How It Stacks Up Against Rivals
Set against other popular portable compressors such as the VIAIR 88P or the EPAuto 12V DC Portable Air Compressor, several points stand out. The Smittybilt’s higher CFM rating means faster inflation, particularly on the larger tires that off-road vehicles run. Its metal construction is more rugged than the mostly plastic builds of some competitors. The integrated pressure gauge is a mechanical dial rather than a digital readout, which is simpler to read in bright sun and has nothing to lose power. Buyers looking at the same brand’s larger units should see the VIAIR 400P for trucks and SUVs.
However, competitors such as the VIAIR 88P are quieter and come with longer cords, which suits users who value low noise and flexibility. The EPAuto model is more compact and cheaper but is not specified for the sustained duty that serious off-road use demands; a budget alternative with more power options is the AVID POWER triple power source inflator.
In sum, this compressor leads on power and build quality and trails on noise reduction and portability against some peers.
Favorable Aspects That Make This Compressor a Winner
- The robust motor and high airflow allow for quick inflation of heavy-duty tires.
- Automatic shut-off enhances safety and prevents motor burnout.
- Universal compatibility with various pneumatic tools adds versatility.
- The integrated pressure gauge is both accurate and easy to read.
- Comes with handy accessories like pressure hoses and a carrying bag.
Areas of Concern That Potential Buyers Should Know
- The noise level can be quite disruptive in quiet environments.
- Cord and hose lengths could be longer to improve usability for larger vehicles.
- Relatively heavy at 20.9 pounds, which affects portability.
- The tank volume in the listing does not match the case size and needs confirming.
- Noisy operation may require ear protection during extended use.
On specification this compressor pairs strong performance with a short list of minor inconveniences, most of them tied to weight and noise rather than to output. The combination of strength, safety features, and versatility makes it a sensible choice for off-road use and for a home toolkit, with the caveat that anyone carrying it far will feel the 20.9 pounds.
