Description
Power and Performance That Impresses

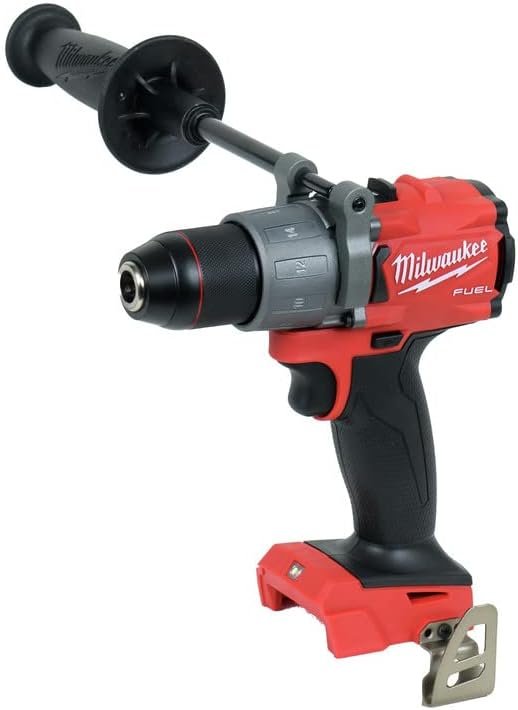

The Milwaukee 2804-20 M18 FUEL 1/2 in. Hammer Drill (Tool Only) is built on a brushless motor developed for this tool rather than borrowed from a lower tier. Milwaukee rates it at a peak torque of 1,200 in-lbs, which is the figure that matters when driving large fasteners or boring into concrete and hardwood, and a maximum rotational speed of 2,000 RPM, which keeps it from feeling slow in wood and metal. The Redlink Plus Intelligence system sits between the motor, the trigger and the pack, managing overload during heavy work to protect both the tool and the battery. Anyone comparing within Milwaukee’s own range should also weigh the 2904-20 M18 hammer drill, which is the newer step in the same family.
Compact Design and Ergonomics for Extended Use
The compact metal body is listed at 9″ long by 5″ wide and 11″ high, which puts the front of the tool into stud bays and cabinets that a longer drill cannot enter. The single handle design keeps the grip simple, and short overall length is what does the most to reduce fatigue, since a shorter tool puts less leverage on the wrist. Weight distribution is the other half of that equation, and it is what makes overhead or awkward angle drilling manageable. The red color is easy to spot on a cluttered site, which is a small practical benefit on a shared jobsite. Where the work is genuinely tight, the smaller M12 Fuel hammer drill goes further still.
One spec on the listing does not hold together: the chuck is given as 6.35 mm, which is 1/4 inch, while the product name itself specifies a 1/2 in. hammer drill. Those two figures cannot both describe the same chuck, so treat the 6.35 mm entry as bad listing data rather than a real limit, and confirm the chuck capacity with the seller before buying bits around it.
Versatile Modes for Varied Applications
The tool switches between driving, drilling and hammer drilling, and those three modes cover most of what a general purpose drill is asked to do. The hammer drill function is the one that earns the name, adding percussion for brick and concrete anchors. Drill mode drops the percussion for clean, controlled holes in wood and metal. Variable speed on the trigger is what prevents stripped screw heads and torn surfaces, since the operator can start slow, seat the fastener and then bring the speed up.
Benefits of the M18 Battery System
Batteries are not included, and the tool is designed around Milwaukee’s Red Lithium XC5.0 battery pack, the extended capacity option in the range. The XC packs are specified for more work per charge and a longer service life than standard capacity cells, which is the reason they are the sensible pairing for a hammer drill rather than a light driver. Because the pack is part of the wider M18 system, it moves between tools, which is where the platform earns its value for an owner who already has M18 gear on the shelf.
Drawbacks That Might Matter to Some Users
A few things deserve thought before purchase. The weight is well balanced but still present, and it grows once an XC5.0 pack is fitted, which is worth planning for on a day of overhead work. The tool-only format is the bigger consideration: a buyer starting from nothing pays for a battery and charger on top, so it is worth pricing this against the 2804-22 version of the same M18 Fuel hammer drill before committing. The hammer function is also loud, as percussion mechanisms tend to be, which matters in occupied buildings and indoors where hearing protection may not be in use.
Highlights of the Milwaukee Hammer Drill
- Milwaukee claims up to 60% more power than competing drills, credited to the brushless motor
- Redlink Plus Intelligence system for overload protection and optimal performance
- Compact and ergonomic design enhances maneuverability
- Versatile three-mode operation: driving, drilling, and hammer drilling
- Compatible with the extensive M18 Red Lithium battery lineup
Limitations to Keep in Mind
- Sold as tool-only, requiring separate purchase of batteries and charger
- Slightly heavier than some cordless drills in the same class
- Higher noise levels during hammer drilling function
- The listed chuck size conflicts with the tool’s own 1/2 in. designation and needs confirming
Competing Brands and Alternatives
Against popular alternatives such as the DeWalt DCD996B and the Bosch 11255VSR, the Milwaukee argument is torque plus battery system compatibility. The DeWalt DCD996B is rated in similar power territory but is a bulkier tool, so the Milwaukee keeps the advantage in tight work. Bosch’s corded option runs quieter, which suits indoor use, while Redlink Plus gives Milwaukee the more developed overload protection of the three. On price, the tool-only approach raises the entry cost unless compatible batteries are already on hand, which is the single biggest variable in this comparison.
Price Performance and Value Proposition
For professionals and serious DIY users who need reliable torque, the price is defensible on the specification alone. The brushless motor combined with intelligent overload protection is the combination that tends to determine how long a cordless drill lasts under daily load, which makes this a sensible buy for heavy users. Casual users will feel the separate battery and charger purchase, but anyone already inside the Milwaukee ecosystem gets strong value for the money, since the expensive part of the system is already paid for.
Taken together, power, compactness and smart electronics make a well balanced package at this price, and the wider hammer drill field shows how the class splits between corded muscle and cordless convenience. The 2804-20 is not flawless, with noise and weight both worth noting, but on the specification it is a strong option for jobsite and household work alike, particularly when paired with a high capacity pack.
