Description
Compact Design and Build Quality

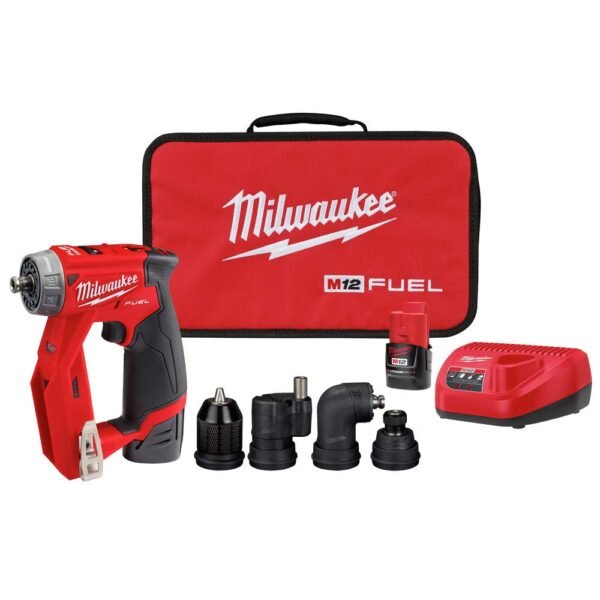

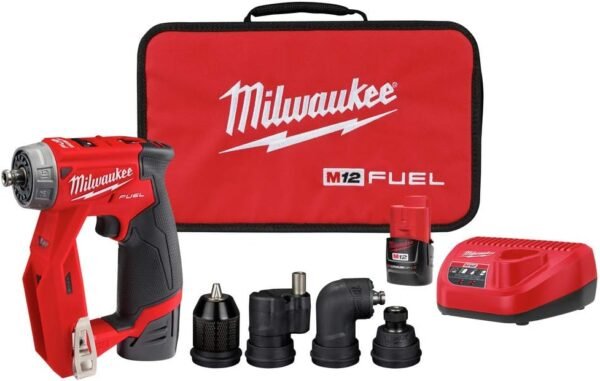

The Milwaukee 2505-22 M12 Fuel Installation Drill/Driver Kit is built around a compact size and lightweight design. At roughly 2 pounds, with listed carton dimensions of 14.9″ by 9.9″ by 4.1″, it is specified for tight spaces and for extended use without fatigue; note that those measurements describe the packaged kit rather than the tool itself. The plastic body is rated for jobsite use, and the black with red accents matches Milwaukee’s professional range.

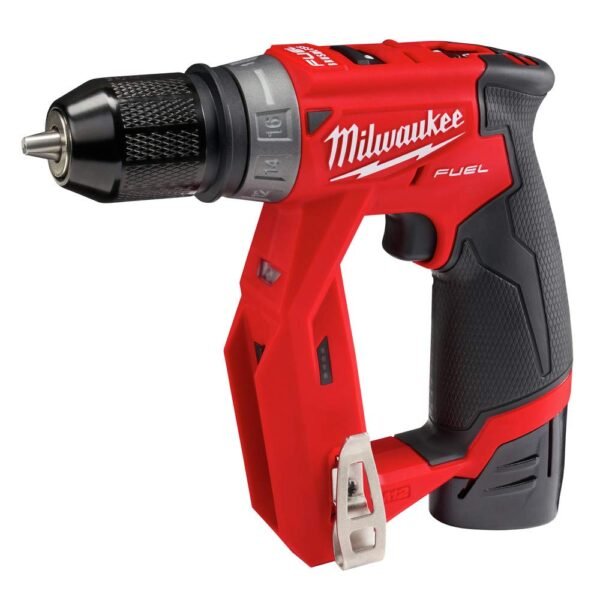

The keyless chuck is all metal, which helps durability and bit retention. Its capacity needs checking, though: the listing gives it as 6.35 millimetres (or 3/8 inch), and those are not the same measurement, since 6.35 mm is 1/4 inch while 3/8 inch is 9.53 mm. Confirm which figure applies before buying bits, because the difference decides whether larger-shank drills will fit at all. Bit changes need no separate key, which keeps workflow quick, and the forward/reverse switch sits near the trigger for directional changes without regripping.
Performance and Power Delivery
The kit ships with two 12-volt lithium-ion batteries, and the tool is rated to a maximum rotational speed of 1600 RPM with maximum torque of 300 inch-pounds. Those figures cover the installation work this tool is aimed at, from driving screws into drywall to drilling in metal and wood, while sitting below what a full-size 18V drill delivers. The variable speed trigger is graduated for controlled starts, which is what keeps a bit from wandering at the moment it bites.
The 2-speed gearbox is the other half of that flexibility: the low range supplies torque for larger fasteners, the high range supplies speed for drilling in softer materials. Between them, the tool covers most home improvement and professional installation requirements.
Innovative Attachments for Tight Spaces

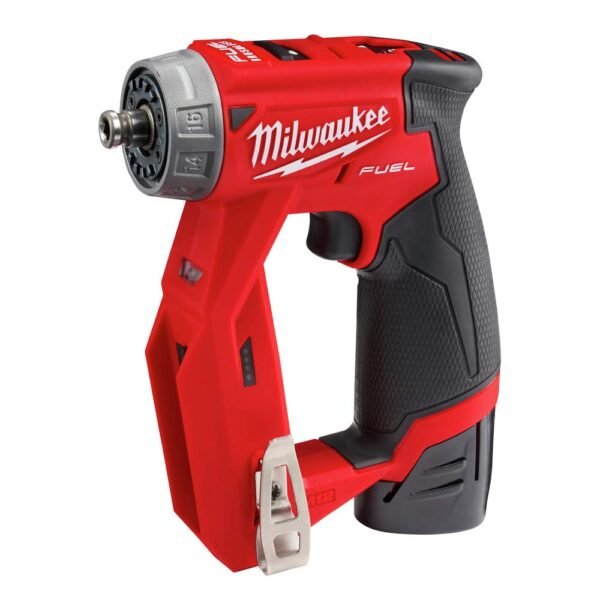

The offset attachment is the feature that most distinguishes this kit. It reaches into corners where a conventional drill body will not fit, and it allows fastening close to finished surfaces without marring them, which is exactly the problem that arises in cabinet installation.
The right-angle attachment drives and drills at 90 degrees, which is what makes work under sinks and behind appliances possible at all. Together these give the kit a versatility that few drills in this class match; Milwaukee also sells the 49-22-8510 right-angle attachment separately for use with other drills. The inline grip improves control in awkward positions by putting the hand behind the bit rather than below it.
Magnetic Bit Holder and Convenience Features
The built-in magnetic bit holder is a small addition with a real effect on pace, keeping several driver bits on the tool instead of in a pocket or on the floor. Over a long installation job, that removes a repeated interruption.
The LED light mounted near the chuck illuminates the working area directly, which avoids the awkward business of holding a torch or repositioning task lighting for each fixing.
Good Points
- Versatile attachments such as the offset and right-angle heads provide access in tight or awkward spaces.
- Lightweight and compact design reduces fatigue and fits easily in confined areas.
- Torque rating and variable speeds cover a broad range of drilling and fastening tasks.
- Magnetic bit holder improves efficiency by keeping bits accessible.
- LED light improves visibility in low-light conditions.
Drawbacks
- Battery runtime is limited under extended heavy use, requiring frequent recharges or swaps.
- The plastic housing, though sturdy, is less robust than heavier-duty drills.
- The listing states no brushless motor, which conflicts with the FUEL designation in the product name, since FUEL is Milwaukee’s brushless line; confirm the motor type before ordering.
- The chuck capacity limits the tool to smaller bits, ruling out heavy-duty drilling.
Product Comparisons
Against DeWalt’s 12V drills or Bosch’s compact models, this Milwaukee kit leads on ergonomics and accessory versatility. DeWalt’s equivalents, including the DCD740B right angle drill, may list longer runtime and slightly higher torque, but they generally lack the offset and right-angle heads that define this kit.
Bosch fits brushless motors across more of its range for efficiency and lifespan, while this Milwaukee counters with variable speed control and a two-speed gearbox. The magnetic bit holder is frequently absent on rivals, a subtle but useful advantage.
For buyers who put access in cramped work areas ahead of outright power, this kit is a strong choice. Where raw output and battery endurance lead the requirement, the M18 FUEL Hole Hawg 2807-20 is the more capable option.
Price Worthiness

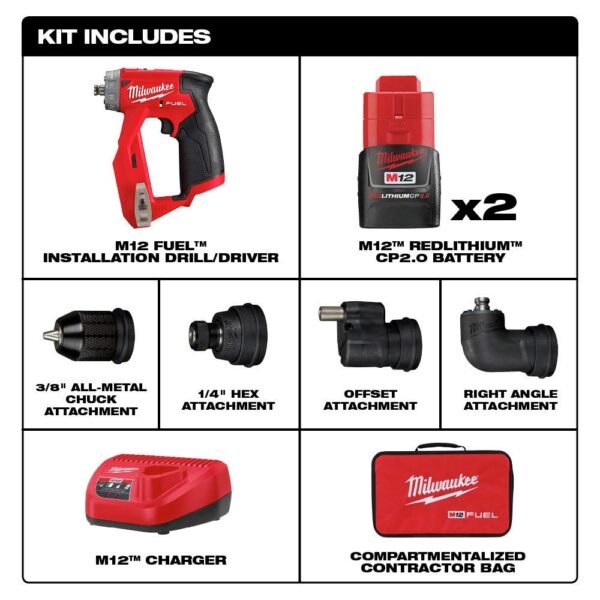

Given the range of included accessories, namely two batteries, a charger, and the offset and right-angle attachments, alongside the rated performance, the kit presents a strong value proposition. It is not the cheapest route to a compact drill, but the outlay is reasonable for DIY users and professionals who need one multi-functional tool for installation work.
Adding the convenience features such as the magnetic bit holder and LED light, plus material coverage across wood, metal and plastic, the kit represents sound value. Buyers needing heavier drilling or longer runtime should look elsewhere, but for general installation and fastening it is a sensible pick. The full right-angle drill category shows the alternatives at a glance.
Reported Owner Feedback
Owner comments on this kit cluster around workflow. The all-metal chuck and the swappable heads let one tool cover drilling and fastening without switching to a second drill, which is the main reason installers choose it. It also comes up as an easier tool to handle than a corded drill for light assembly work, largely because of the weight and the absence of a cable.
The forward/reverse switch is generally described as intuitive, and the balance is reported as comfortable during overhead work. Charging is reasonably quick, though keeping a spare pack charged is the usual advice for avoiding downtime on longer projects. Buyers wanting an even smaller driver for panel work often pair it with the M12 2401-20 screwdriver.
Taken together, this kit suits household repairs, furniture assembly and light construction, combining portability, adequate power, and well-chosen accessories for installation work.
