Description
Compact and Lightweight Design That Fits Anywhere

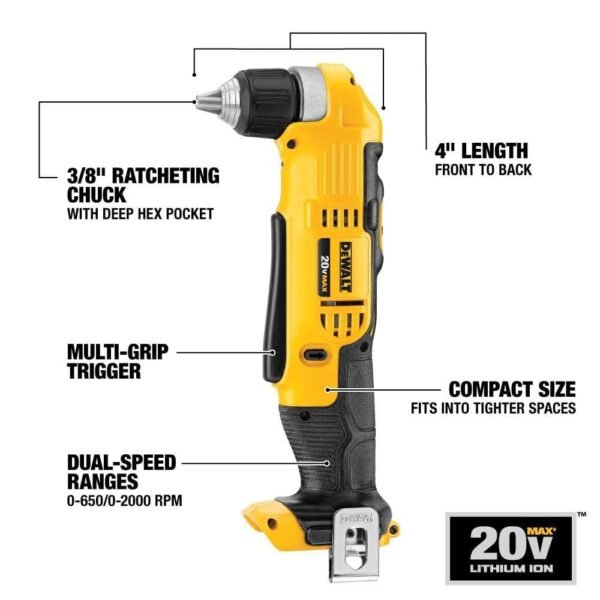

The DEWALT 20V MAX RT ANGLE DRILL is defined by its compact and lightweight build. At 3.25 pounds and 2.38 x 12.38 x 4.5 inches, the head height is the number that matters, because that dimension is what determines whether a drill fits between studs or inside a cabinet carcass where a conventional pistol-grip body cannot. Cabinet installs and tight framing corners are exactly the work this form factor exists for. The yellow color and brushed finish lend it a rugged look, but it is the size and shape that account for the tool’s purpose.
Versatile Speed Settings for Different Tasks
This model features two-speed settings, which is the specification that separates it from single-speed right-angle drills at the budget end. Variable speed control runs up to 2000 RPM, a range that covers both wood and metal. The lower gear is the one suited to driving into metal studs without stripping fasteners, while the top of the range is intended for boring in timber. The listing quotes a maximum chuck size of 20 millimeters, though that figure sits awkwardly against the drilling capacities below and is worth checking before ordering bits.
Power and Performance: What the Ratings Show
Powered by a 20V battery, although batteries are not included, this drill is rated for wood drilling up to 0.74 inches and metal up to 0.38 inches. Here the imported specification contradicts itself: a 20 millimeter chuck is roughly 0.79 inches, yet the metal capacity is given as 0.38 inches, which is about 9.7 millimeters and matches the 3/8 inch chuck normally fitted to drills of this class. The 1.5 amps motor figure is similarly out of step with a 20V tool of this size. Treat both numbers as listing errors and confirm against DEWALT’s own documentation. What is not in dispute is the tool’s tier: it is not built for industrial-scale drilling, but the capacities place it comfortably within household projects and moderate construction work, and the lithium-ion platform holds voltage more steadily under load than the nickel-cadmium packs it replaced.
Good Aspects That Stand Out
- Compact and lightweight design makes it well suited to tight spaces and overhead work.
- Two-speed settings provide flexibility between precision and power.
- Strong drilling capacity for its size, especially in wood and metal.
- Ergonomic grip and balanced weight reduce user fatigue over extended use.
The solid construction is consistent with DEWALT’s cordless line generally, and the cordless format is the main mobility gain over the corded right-angle drills it competes with. Demand for this size of tool skews heavily toward installers and cabinet fitters, which is reflected in the accessory ecosystem built around it.
Limitations That Could Matter
- Battery not included means an additional purchase is necessary if you don’t already own compatible batteries.
- Chuck size maxes out at 20 mm, which could limit larger bit use.
- The drill is not designed for heavy industrial applications, so it may struggle with very dense materials or prolonged heavy-duty use.
- Lack of LED lighting on the drill makes working in dim spaces a bit challenging.
Despite these drawbacks, the specification adds up to a sound choice for its intended audience. For a simple, reliable right-angle drill aimed at standard home improvement or light construction, this one covers the requirement. Buyers who need more reach or torque should look at the heavier options among the right-angle drills we track.
Peer Products: How It Stacks Up Against the Competition
Compared to other right-angle drills like the Makita XAD02Z or Milwaukee’s M12 line, this DEWALT stands out on power output and battery voltage. The 20V system carries more headroom than the 12V competitors. The Makita is rated well for compactness and durability but lower on torque. Milwaukee’s M12 FUEL installation drill counters with an LED light and a brushless motor, but its 12V platform sets a lower ceiling for demanding jobs. For work beyond either, the M18 FUEL Super Hawg is the heavy-duty end of the same category.
Where the DEWALT falls slightly behind is in ergonomics and accessory features. Neither the Makita nor the Milwaukee requires separate battery purchases if you are already invested in their ecosystems, whereas this drill’s battery must be bought separately unless you own other DEWALT tools such as the DCD771C2 compact drill driver, which ships with two packs. Additionally, the lack of onboard lighting is a missed opportunity compared to peers that include it as standard.
Still, the DEWALT suits users prioritizing drilling power and compactness over extra features. Its 20V MAX battery platform is a significant draw for those already holding compatible packs, making it a straightforward addition for existing tool owners. Where even this body is too bulky, a right-angle attachment is the lower-cost alternative to a dedicated tool.
Price Worthiness: Is It Worth the Investment?
Considering its feature set against the category, this right-angle drill offers solid value for money. It is not the cheapest on the market, but the balance between weight, power, and versatility supports the cost. For a budget-conscious but reliable right-angle drill, this one lands well without stripping out capability.
For DIYers and professionals who need a compact, cordless tool capable of handling both wood and metal drilling, the specification covers a lot of ground for the money. The absence of a battery is a genuine downside when starting from scratch, but for existing DEWALT owners it is an economical addition. The build and motor specification point to a tool that will last through many projects, which is where the long-term cost-effectiveness argument comes from.
Everyday Handling and What Owners Report
The grip and balance are the design points most often cited in owner feedback, since a right-angle body puts the hand behind the tool rather than above it, which changes how wrist strain accumulates on repetitive work. Ease of use is a recurring theme in that feedback, with the tool being approachable for less experienced users. The two-speed gearbox switches on the body, and trigger control is variable, which is what makes pilot holes manageable.
The clearest recurring criticism is the lack of onboard LED, which forces reliance on external lighting in the very confined, poorly lit spaces this tool is designed to reach. Charging a separately purchased battery is an added planning step rather than a fault. Noise output is moderate for the class.
Taken together, the tool occupies a clear niche for tight spaces and precision drilling, pairing DEWALT’s record for durability with a practical feature set that suits a range of tasks.
This review is compiled from the published specifications for the DEWALT 20V MAX RT ANGLE DRILL, the manufacturer’s own documentation, and the pattern of feedback left by buyers. It weighs strengths such as compact design and solid power against considerations including battery inclusion and lighting, so you can judge whether this tool aligns with your needs.
