Description
Powerful Performance and Versatility in One Tool

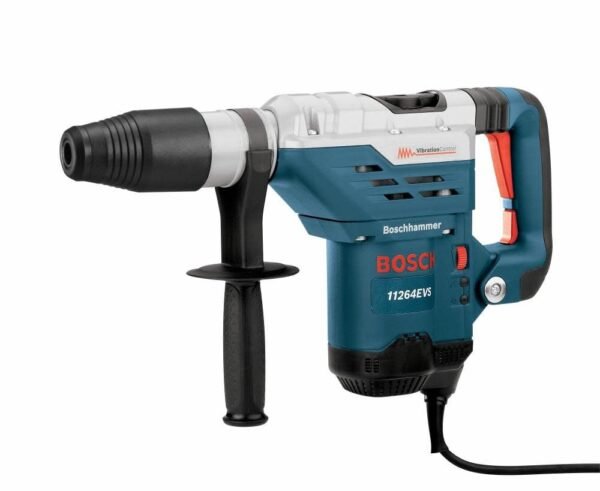

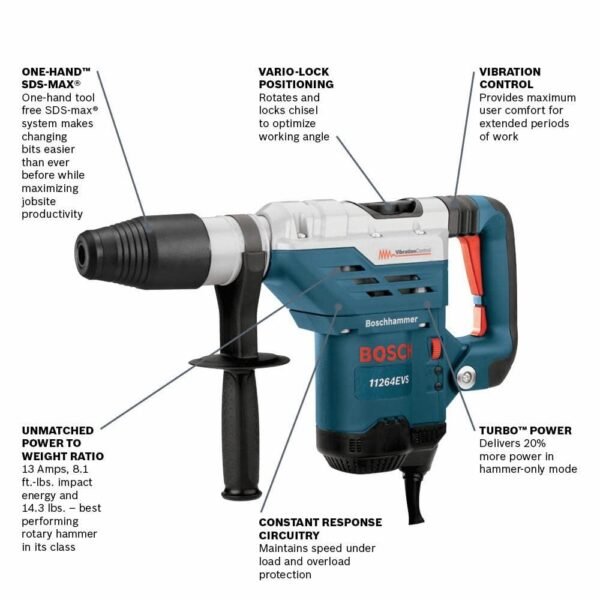

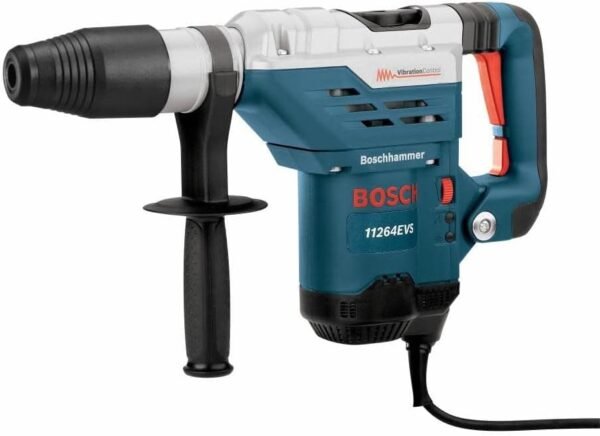

The BOSCH 11264EVS 1-5/8 Inch SDS-Max Combination Hammer is built around a strong power-to-weight ratio, and the numbers behind that claim are on the spec sheet. Bosch rates the 13.0 amp motor at 6.8 ft.-lbs. of impact energy in normal mode and up to 8.1 ft.-lbs. in turbo mode, with hammer-only mode listed at 20% more power than the combination setting. All of that arrives in a tool that weighs 14.3 pounds, which is modest for an SDS-Max machine hitting that hard. That ratio is the reason this model sits where it does in the lineup, and it is worth reading alongside the closely related Bosch 11265EVS before choosing between them.
The rotary hammer mode and hammer-only mode cover two different jobs from one tool: drilling concrete through the SDS-Max bit system, and light demolition without rotation. The dual-mode selector is a simple mechanical switch rather than a menu, which is the right approach on a tool used with gloves on. Being able to change function in seconds is what keeps a single hammer useful across a mixed day of chipping and drilling.
User Comfort and Vibration Control
Power on this scale is only usable if the operator can hold it, which is what Bosch’s Active Vibration Control system is designed to address. It targets the vibration that makes long sessions with an SDS-Max hammer exhausting, and on a tool rated at 8.1 ft.-lbs. that is not a cosmetic concern. The ergonomically designed grip area supports the same goal, spreading load across the hand rather than concentrating it in a hotspot.
The practical payoff of vibration reduction is control as much as comfort. A hammer that shakes less is easier to hold on a mark, which matters on precise concrete drilling where the hole position is fixed by the anchor layout rather than by where the bit wandered.
Efficiency of the SDS-Max Bit System
Bit changes are the hidden time cost on a rotary hammer, and the one-handed, tool-free SDS-Max bit system here removes most of it. Automatic bit-locking means the bit seats and stays seated with no secondary collar to tighten, which pays back every time the tool changes tasks. The specification covers solid bits up to 1-5/8 inches and core bits up to 4-1/8 inches in diameter, so the tool handles anchor holes and larger core work without a second machine.
The system also supports the tool’s stated maximum impact energy transfer rate. A bit held tightly in a clean SDS-Max interface loses less of the blow to slop in the chuck, which is where cheaper systems give up drilling speed as they wear.
Constant Performance Under Load
The Constant Response Circuitry is the electronics package that holds speed as resistance rises, which is exactly the condition that appears when a bit meets rebar in reinforced concrete. Bogging down at that moment is a common complaint on hammers without speed regulation. The tool also carries overload protection and smooth starts, the first protecting the motor from a stalled bit and the second stopping the tool from twisting out of the hand at power up.
The dial speed control covers 170 to 340 RPM, and that range is a real tool for matching speed to material and bit diameter. Large diameter core bits want the lower end of the range; smaller solid bits in softer material can run at the top of it.
Good Points
- Powerful 13 amp motor with up to 8.1 ft.-lbs. impact energy in turbo mode
- Active Vibration Control system reduces user fatigue significantly
- SDS-Max bit system allows quick, tool-free bit changes with automatic locking
- Constant Response Circuitry maintains consistent speed under load
Areas for Improvement
- The tool is on the heavier side at 14.3 pounds, which may challenge users who prefer lighter options.
- Lacks a reversing function, which some other rotary hammers offer for added versatility.
- The corded design means mobility depends on power outlet availability, limiting use in some remote locations.
- The 12-foot cord length could be restrictive for large job sites unless paired with an extension.
Comparing to Popular Competitors
In a crowded field, this combination hammer is measured against rivals like the Makita HR4013C and DeWalt D-25333K. The Bosch argument is impact energy paired with vibration reduction, where several competitors chase a lower weight figure and let comfort take the hit. The Makita is rated in similar territory on power, and Active Vibration Control is the difference Bosch offers on a long day rather than on a spec sheet.
Where rivals answer back is on features Bosch left out: a reversing function and a longer cord. The DeWalt includes a reversing switch and a little more reach, which will matter to anyone who backs bits out of deep holes regularly or works away from a convenient outlet.
Overall, the Bosch leads on power-to-weight balance and user comfort. Buyers who want cordless freedom or a reversing function should look elsewhere, and anyone whose work is pure breaking rather than drilling is better served by a dedicated breaker such as the Bosch 11316EVS SDS Max demolition hammer.
Price Performance
Judged on features, the tool offers a solid price to quality ratio. It delivers professional grade power and build at a price the performance supports, and for anyone running heavy-duty work daily, the reduction in vibration fatigue is part of what the money buys.
The side handle and carrying case add to the package, since both are things a buyer would otherwise purchase. Against cheaper rotary hammers, the advanced electronics and ergonomic design justify the step up in price. For occasional or lighter projects, a smaller SDS-plus tool like the Bosch RH328VC covers the work for less, and browsing rotary hammers by capacity class shows how the tiers are priced against each other.
Handling and Build Quality
The build follows Bosch’s usual standards for the class: solid, robust, and specified for years of hard use. The 18-inch tool length gives useful leverage without becoming unwieldy in a stairwell or a trench, and the blue finish is the familiar professional trim.
The smooth start mechanism prevents jerky motion at startup, and the two-speed settings separate delicate work from aggressive drilling. This is not the lightest tool in its class, but on a hammer the weight does useful work, keeping the machine planted and letting the blow go into the concrete instead of back up the arms.
Final Thoughts on Daily Use
As a daily driver for concrete drilling and light demolition, this combination hammer covers a wide brief. The high impact energy and vibration control are the two specifications that decide whether a tool of this size stays productive across a shift, and the easy bit changes and constant speed under load keep tough holes from turning into a fight. The missing reversing function and the corded design are real limits, but they are reasonable trade-offs at this power and price.
The overall impression the specification gives is a premium tool without premium complication: a straightforward mechanical selector, proven electronics and a bit system that stays out of the way. Anyone who needs a versatile, powerful rotary hammer that does not wear the operator down deserves to have this one on the shortlist, alongside the heavier Bosch RH745 for work that runs bigger.
