Highlights of the Milwaukee 278822HD M18 FUEL Magnetic Drill Kit

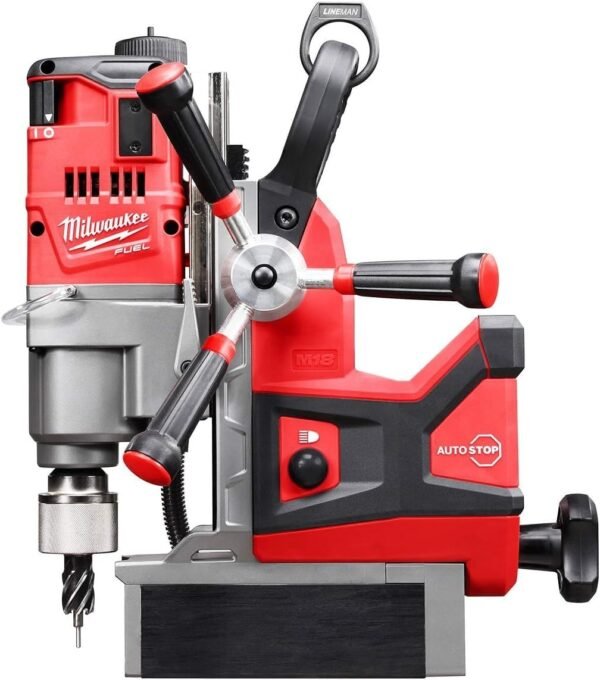

The Milwaukee 278822HD M18 FUEL 1-1/2 in. Lineman Magnetic Drill Kit is built around cordless power and precision for steel work. This tool packs a POWERSTATE brushless motor that Milwaukee rates for high torque and long service life. The REDLINK PLUS intelligence is the electronics package that protects the tool and battery from overheating and overload during intense jobs. The magnetic base operating independently of the power source is the headline safety feature, because it provides a holding force up to 2,000 lbs. and keeps that grip whether or not the tool has power. Versatility comes from support for a 1-1/2 inch annular cutter capacity alongside a 1/2 inch twist bit. That combination means fewer tool changes on a job.
- Milwaukee lists up to 2x longer motor life thanks to brushless technology.
- Magnetic base operates without electricity, ensuring constant grip even if the battery dies.
- Includes high-capacity M18 REDLITHIUM HIGH OUTPUT XC8.0 batteries for extended run time.
- Compact size with a stroke length of 5-3/4 inches and motor head adjustment of 5-1/8 inches for precision.

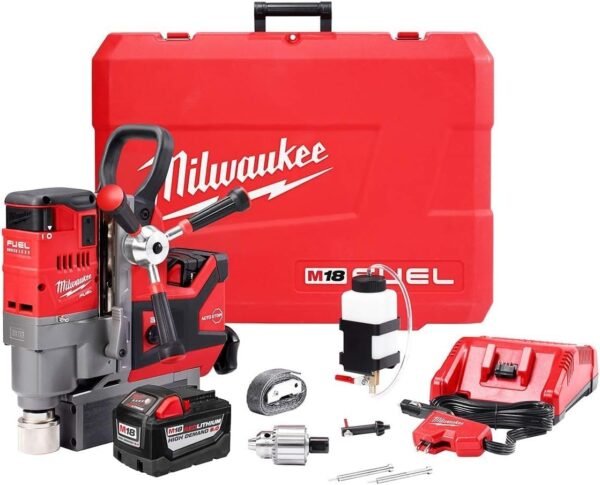

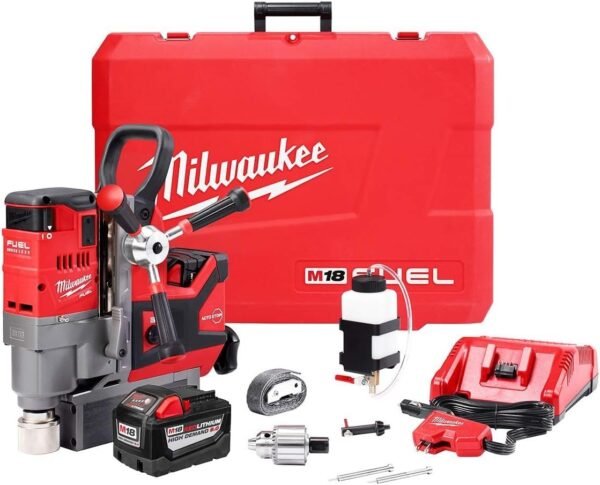

- Comes with a comprehensive kit including charger, chuck adapter, safety strap, and carrying case.
Drawbacks That Might Affect Some Users
Despite its many strengths, the drill kit is not without flaws. The weight of 56.8 pounds makes it quite a heavy tool to lug around, especially for those who need to carry it up ladders or across job sites frequently. While the magnetic base offers a strong hold, it is rated mainly for 1/4 inch or thicker steel, so thinner metals reduce its stability during drilling. The price point leans toward the higher side, which could be a hurdle for hobbyists or occasional users who do not require such heavy-duty capabilities. Also, the maximum rotational speed of 400 RPM is low compared to corded alternatives, which matters most when drilling smaller holes where higher RPM is normally used.
- Hefty tool weight reduces portability.
- Magnetic base effectiveness decreases on thinner metals.
- Higher price might not suit casual users.
- Speed capped at 400 RPM, potentially slower than corded drills.
Performance and Power on the Spec Sheet
Worth flagging before anything else: the imported product copy for this kit both claims it outpaces corded competitors on speed and lists a 400 RPM ceiling that is below most corded magnetic drills. Those two statements cannot both hold. The specification is the reliable half, so treat 400 RPM as the figure and expect a corded machine to turn faster. Where this kit does lead is runtime and freedom from a cord, not spindle speed.
The brushless motor delivers its power with less waste heat than a brushed equivalent, which means less downtime waiting for a tool to cool during heavy-duty tasks. The battery system is the strongest part of the package, with the REDLITHIUM HIGH OUTPUT 8.0 pack rated well above standard lithium-ion cells for work per charge. The permanent magnet design is what guarantees the base will not release if the battery runs flat mid-cut. The Auto-Stop lift-off detection is a genuine safety feature, cutting power to the motor automatically if the drill starts to shift, which is the failure mode that causes injuries on vertical steel. Anyone weighing corded torque instead should read our Hougen HMD904 write-up.
Ease of Use and Versatility

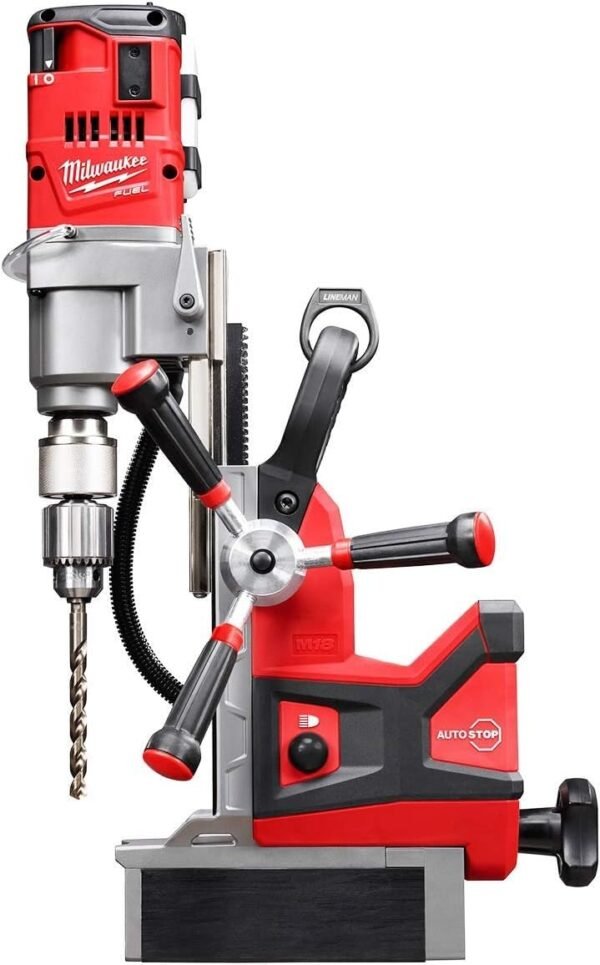

The control layout is conventional despite the range of features packed into it. Switching between the 1-1/2 inch annular cutters and the 1/2 inch twist bits is handled by the included 3/4 inch Weldon to 1/2 inch chuck adapter and the chuck key. The magnetic lubrication tank included in the kit is what keeps cutting fluid on the cutter and reduces wear during extended sessions. The carrying case makes transportation easier, though the weight remains a genuine consideration. The 5-3/4 inch stroke length and adjustable motor head are the specifications that allow precise positioning, which is crucial when working on irregular or vertical surfaces.
Alternative Offerings to Consider
Comparing this magnetic drill kit to popular alternatives like the DeWalt DWE1622K or the Evolution RAGE4, the Milwaukee model stands out with its cordless power and strong magnetic base. The DeWalt DWE1622K offers a two-speed gearbox and a well-regarded magnetic hold but is corded, which limits portability. The Evolution is more budget-friendly but lacks the brushless motor and advanced battery tech found in this Milwaukee drill, as does the entry-level VEVOR magnetic drill. The Milwaukee tool leads on power management, battery longevity, and safety features, making it a better choice for professionals who need reliable cordless performance. However, if drilling speed or lighter weight is the priority, corded competitors edge it out.
Value Assessment: Is It Worth the Investment?
Considering the quality and features packed into this magnetic drill, the price is justified for professionals or serious DIYers who demand reliability and power on the job. The two high-output batteries and rapid charger included reduce downtime significantly, which can be a major cost saver on long projects. For those who frequently work with steel and need a cordless solution, this product offers strong value through its motor technology and safety systems. Corded shoppers can price the Milwaukee 4272-21 for a fraction of the outlay. Casual users will find the investment steep, especially given the tool’s bulk and weight. For heavy-duty users, the money spent translates into less hassle and more productivity.
Positive Features That Stand Out
- Brushless POWERSTATE motor for durability and power.
- Permanent magnetic base ensures continuous hold without battery drain concerns.
- REDLINK PLUS intelligence prevents overload and overheating.
- High-capacity REDLITHIUM batteries for extended runtime.
- Safety-oriented design with Auto-Stop lift-off detection.
Limitations Worth Noting
- The tool is heavy and less portable compared to lighter magnetic drills.
- Speed capped at a maximum of 400 RPM, which might slow down some applications.
- Magnetic base grip less effective on thinner metal surfaces.
- Higher price point may not be suitable for hobbyists or infrequent users.
Judged on its specifications, this kit is built for serious work, especially in environments where a cord would be cumbersome. Its motor technology and safety systems make it a standout among the magnetic drill presses we track. While it has drawbacks like weight and the 400 RPM ceiling, the overall package is a valuable asset for heavy-duty drilling tasks.
