Description
Positive Features of the Drywall Screwgun

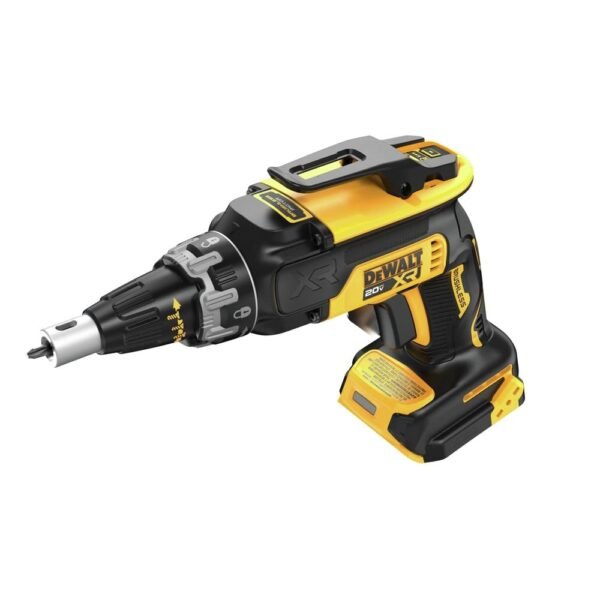

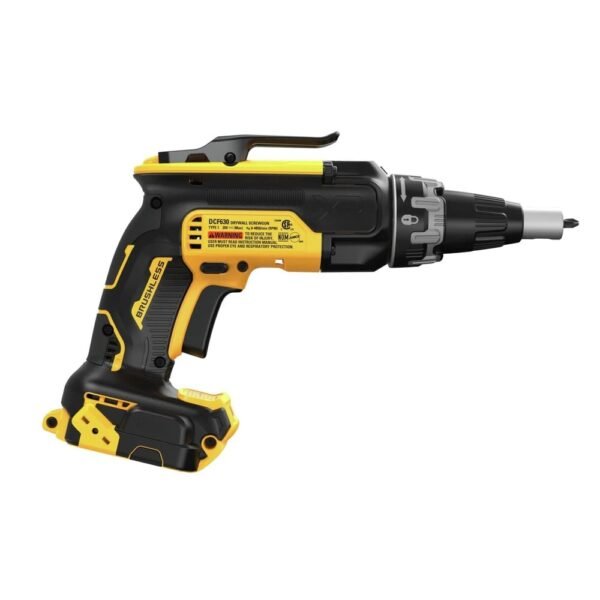

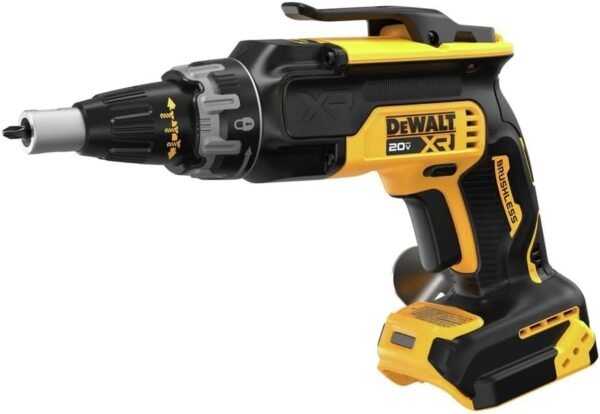

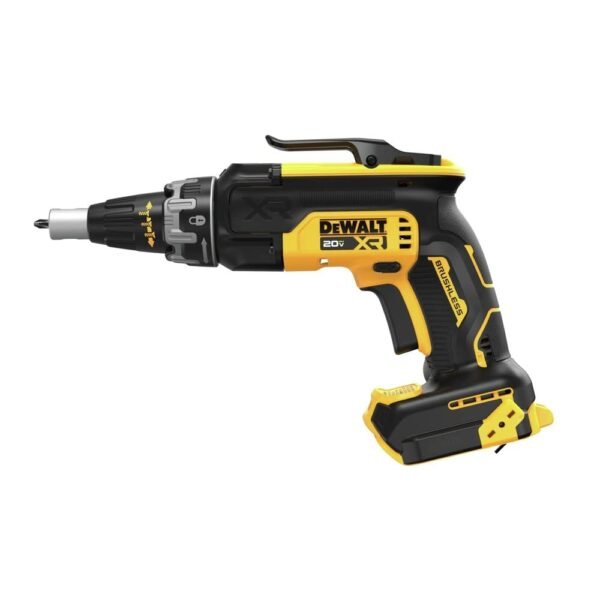

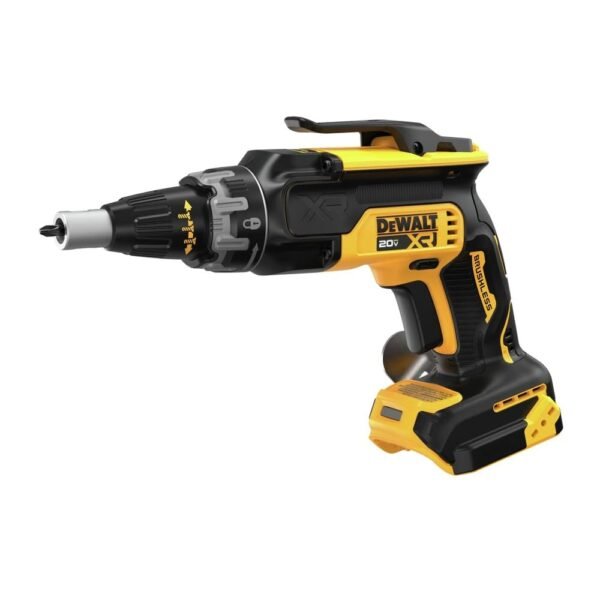

The DEWALT 20V Max Drywall Screwgun, Tool Only (DCF630B) is a purpose-built drywall tool rather than a general driver pressed into the role, and the specification that carries the most weight is the brushless motor. It is rated for efficient performance and extended runtime, which translates to fewer battery swaps and less downtime across a hanging day. Brushless designs also shed less waste heat than brushed equivalents, so sustained driving runs cooler and holds speed better.
Four tool modes are the headline feature. The tool offers Trigger Mode (High Speed) for fast work, Trigger Mode (Low Speed) when precision is needed, PushStart Mode for hands-free operation, and a Lock-On Mode for continuous use. The top-mounted electronic mode select is positioned for one-handed changes, so switching modes does not require setting the tool down or regripping.
The adjustable nosecone sets consistent screw depth, which is what prevents the overdriving and underdriving that ruins a drywall finish. The compact design and low weight (about 2.6 pounds) are aimed squarely at extended use, since arm fatigue is the practical limit on a long ceiling run rather than motor power. The wide upper grip flange is there to give a secure hold, which matters most overhead and in awkward positions.
- Brushless motor ensures longer run time and efficiency
- Four dedicated modes for versatile drywall applications
- Adjustable nosecone for precise screw depth every time
- Compatible with the wider DEWALT 20V Max battery platform
Areas for Improvement
Set against those strengths are some real limits. Although the screwgun offers a wide speed range, the maximum speed caps at around 4400 RPM, which sits below some competing professional-grade drywall screwguns. On very high volume work or thicker substrates, that ceiling is the constraint.
The tool ships as a bare tool, meaning batteries and charger are sold separately. That is standard practice, but it matters if there are no compatible 20V Max batteries already in the kit. Without them the tool cannot be used at all, and the entry cost is meaningfully higher than the listed price.
The LED light is useful in dimly lit spaces, but it is a small unit and does not throw a wide beam. Work in genuinely dark corners will still need a separate light source.
- Maximum speed might feel limiting for some heavy-duty tasks
- Batteries and charger not included, so additional investment is required
- LED light has limited range, requiring supplementary lighting in darker environments
Design and Handling
The compact size and ergonomic grip are among the screwgun’s better design decisions. The lightweight build reduces fatigue, which is the deciding factor during long drywall installations. The belt clip is placed for moving around a workspace without repeatedly setting the tool down.
Mode changes run through the electronic mode select dial, which allows adjustment without breaking workflow. PushStart Mode is the most distinctive of the four: it starts the motor on tip pressure rather than a trigger pull, which is the more natural action when setting screws in tight spots or at awkward angles.
The tool is also lanyard-ready, a genuine consideration for ladder and scaffolding work, since it addresses drop safety rather than performance. Within the screw guns we cover, lanyard provision is still far from universal.
Performance and Reliability
The specification set points to consistent behavior across drywall thicknesses and substrates. The brushless motor is rated to deliver steady torque without bogging down, and the two trigger speeds are what allow light-gauge and heavy-gauge work to be handled by the same tool.
Fewer jams and stalls are the expected benefit of electronic speed control paired with a brushless motor, compared with older brushed screwguns. The adjustable nosecone is the component that keeps screws at the correct depth, protecting the drywall paper and avoiding proud screw heads that telegraph through finish.
The LED indicator light also reports battery and tool status, which removes some guesswork mid-job.
Value Assessment
Given the feature set, the price is defensible, though this is not the cheapest drywall screwgun available. The separate battery and charger requirement raises the real cost for anyone not already inside the DEWALT 20V Max lineup, and that calculation changes entirely for buyers who own packs from a drill such as the DCD800B XR drill driver.
The 3-year limited warranty and 90-day satisfaction guarantee back the purchase, which carries weight for professionals buying durable equipment. For anyone hanging drywall regularly, the balance of durability, mode flexibility and ergonomic design is the argument for spending here rather than adapting a general-purpose driver.
Product Comparisons
Against other drywall screwguns, this model leads on brushless motor efficiency and versatile mode selection. Several competitors match the speed range but omit a PushStart equivalent, which is the mode that most changes how the tool is used. A few rivals do list higher maximum RPM figures, better suited to very high volume production work.
Milwaukee and Makita offer comparable models with different ergonomics and battery systems, and Milwaukee’s closest relative in this space is the compact M12 Fuel 3453-20 impact driver, which takes the general-driver route instead of a dedicated nosecone. The DEWALT separates itself with TOOL CONNECT chip readiness, enabling integration with jobsite asset management apps, a feature that is still uncommon on drywall screwguns.
Some competing models do include batteries and chargers in the box, which is more cost-effective for newcomers. For established users with 20V Max batteries on hand, the bare tool format is the cheaper route. Buyers weighing corded alternatives should compare the DW255 corded screw gun, which trades cordless freedom for unlimited runtime.
Additional Features and Jobsite Integration
The TOOL CONNECT chip pocket accepts a chip that links the screwgun to the DEWALT Site Manager app. On larger sites that adds a layer of asset tracking which can reduce tool losses, and it remains rare enough in this category to count as a differentiator rather than a checkbox.
The tool’s solid rectangular shape and brushed finish give it a professional appearance, while the black and yellow color scheme makes it unmistakably DEWALT. Aesthetics do not affect output, but consistent branding does help identify tools on a shared site.
Downsides to Keep in Mind
A few drawbacks are worth restating before buying. The absence of batteries and charger means a larger financial commitment for new buyers. The LED work light’s limited range will frustrate anyone regularly working in poorly lit conditions. Those wanting the same fastening capability without a dedicated tool should look at the DCF6202 screw gun attachment, which converts an existing impact driver instead.
The speed ceiling may also limit specialized drywall work in very thick materials. The tool covers mainstream jobs comfortably, but extreme applications will find its limits.
- Separate battery purchase required, increasing initial costs
- LED light insufficient for wide or very dark workspaces
- Speed may not satisfy all heavy-duty drywallers
On the specifications, this drywall screwgun combines considered design, a capable brushless drivetrain and practical jobsite features, while leaving room to improve on lighting and top-end speed for the most demanding drywall professionals.
