Description
Powerful Brushless Motor and Extended Runtime

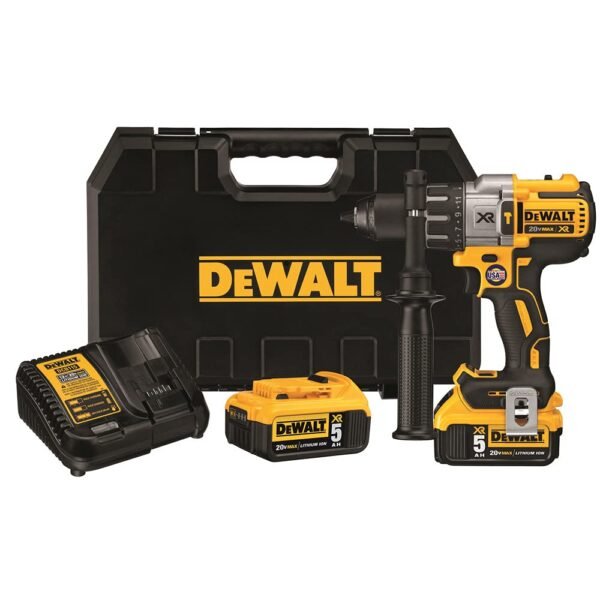

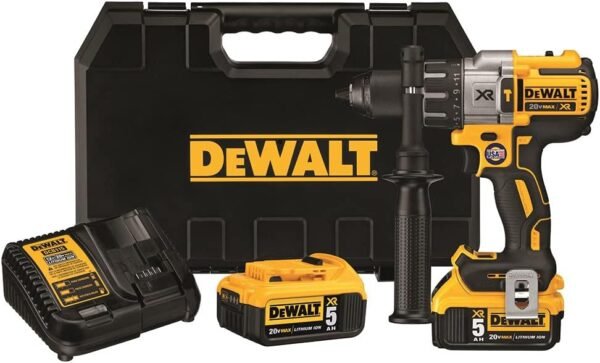

The DEWALT 20V MAX XR Hammer Drill Kit, Brushless, 3-Speed, Cordless (DCD996P2) is built around a high efficiency brushless motor that DEWALT rates for up to 75% more runtime than traditional 18V NiCad brushed motors. That figure comes from the motor design rather than the pack: without brushes there is less friction and less heat, so more of the stored energy reaches the bit. The 3-speed transmission tailors speed to the task, from careful screwdriving to heavy masonry drilling, with the top speed reaching 2250 RPM in hammer drill mode.
The kit includes two 5.0Ah XR Li-Ion batteries, quoted at around 33% more capacity than standard packs, which is what keeps a hammer drill working through a shift rather than through a morning. The fuel gauge on each pack shows remaining charge, so a battery can be swapped at a sensible point instead of dying mid hole. Cordless operation removes the cord as a trip hazard and a range limit, which is the reason this class of tool has largely replaced corded drills on site.
Heavy-Duty Chuck and Versatile Performance
The drill uses a 1/2-inch ratcheting nitro-carburized metal chuck with carbide inserts. Chuck grip is the specification that decides whether a bit stays put under high torque, and carbide jaws biting into a hardened, nitro-carburized body is a materially better answer than plain steel jaws. In dense wood or metal, that is what prevents the slip that ruins both accuracy and the bit shank.
There are three settings on the tool: drill, hammer drill and the LED. The hammer drill function is rated at up to 38,250 BPM, and blows per minute is what governs progress through masonry once the bit is in contact. Concrete block and brick are well within its range, and the speed presets allow the tool to be tuned rather than simply held harder. The result is a drill that covers furniture assembly and construction work without changing tools.
Lighting Solutions for Dark Workspaces
The integrated 3-mode LED is a genuine feature rather than a bullet point. Rated at 20 times brighter than the previous generation, it produces usable light in a basement or a crawl space instead of a faint circle. The LED spotlight mode includes a 20-minute auto shutoff, which prevents a forgotten light from flattening a pack overnight, and it is most useful exactly where external lighting cannot reach, inside cabinets and tight corners.
The side handle and belt hook are the handling additions. The 360-degree adjustable side handle matters most when a large bit binds, since it gives the second hand a position to resist the twist, and it reduces wrist strain when drilling at an angle or overhead.
Good Points
- Longer battery life with 5.0Ah XR lithium-ion packs and clear fuel gauge
- Powerful brushless motor delivering up to 75% more runtime and high torque
- Durable 1/2-inch ratcheting chuck with carbide inserts for superior bit grip
- Multi-speed settings and hammer functionality for versatile applications
- Bright 3-mode LED lighting with auto shutoff for dark or confined spaces
Downsides
- The listing gives an 11 pound weight, which does not describe a cordless drill of this class and needs checking before buying.
- The price point is on the higher side compared to some budget cordless drills, which may deter casual DIYers.
- Although the battery capacity is high, charging times could still be faster to minimize downtime.
- The kit includes a rigid hard case but lacks extra drill bits or accessories, meaning additional purchases might be necessary.
User Experience and Handling
One number in the listing needs addressing before anything else about handling. The drill’s weight is quoted at around 11 pounds, which is not a credible figure for a 20V MAX cordless drill and most likely describes the packed kit, meaning the tool, two 5.0Ah packs, the charger and the case together. Either way it should not be used to judge how the drill feels overhead, so treat the shipping weight field as unreliable and check the bare tool specification separately.
What can be said from the specification is that the grip and the three-speed transmission are designed for exactly the transitions this tool sees: driving screws one minute, drilling drywall or concrete the next. The metal chuck removes the doubt about bits slipping during cabinetry and shelving work. The cordless design keeps the tool usable away from outlets, the LED covers poorly lit corners, and the battery gauge means running out of charge is a choice rather than a surprise.
Product Comparisons
Against competitors such as the Makita XPH12Z and the Milwaukee M18 Fuel Hammer Drill, this DEWALT competes on battery capacity and on a quoted maximum torque of 95 Nm. The brushless motor gives it a clear efficiency and runtime advantage over budget tools still using brushed motors. Makita’s drill is lighter, which suits buyers who weigh handling above outright power. The Milwaukee M18 hammer drill kit is the closest rival on specification.
The Milwaukee M18 Fuel line leads on electronics and charging speed at a higher price. DEWALT’s DCD996P2 answers with build quality and the heavy-duty chuck, which makes it the better fit for heavy construction and professional use where grip strength and durability decide the purchase. Where a cord is acceptable, the DEWALT DWD520K corded kit delivers continuous power for less money.
Value Assessment
Counting the included accessories, two high-capacity batteries, a charger, belt hook, side handle and a hard case, this kit represents strong value for the money. The brushless motor alone normally commands a premium, and here it comes with the packs that make it usable, which is the expensive part of any cordless purchase.
It costs more than entry-level drills, and the difference is justified for anyone regularly drilling masonry or metal, or for contractors who need a dependable heavy-duty cordless hammer drill. The 3-year limited warranty adds a measure of protection against early failure. Buyers already holding 20V MAX packs should compare it against the bare tool DCD996B, and the wider selection of hammer drill kits and bare tools puts both in context.
Additional Features Worth Mentioning
The ergonomic design and the belt hook are small details that matter on a jobsite, where a tool needs somewhere to live between uses other than the floor. The 360-degree adjustable side handle is not a gimmick either: it reduces fatigue and improves control during long sessions, and it is the difference between a bound bit twisting the tool and the operator keeping hold of it.
The LED light modes genuinely improve visibility in cramped or poorly lit spaces, which affects both quality and safety on detailed work. The metal transmission is the component that carries heavy workloads over years, and it is the usual difference between a professional tool and a consumer one. Anyone wanting more power still on the same battery platform has the FLEXVOLT Advantage hammer drill as the step up.
Taken as a package, the balance of power, runtime and practical features marks this out as a tool aimed at serious users who need reliability rather than a headline price. The drawbacks are charging speed and a weight figure the listing states badly, and neither outweighs the performance and build quality on offer. For a professional contractor or a committed DIY user, this hammer drill kit covers a great deal of ground.
