DEWALT 20V MAX XR Drill Driver Review Unveils Power Speed and Precision Benefits

Description

Highlights of the DEWALT 20V MAX XR Cordless Drill/Driver

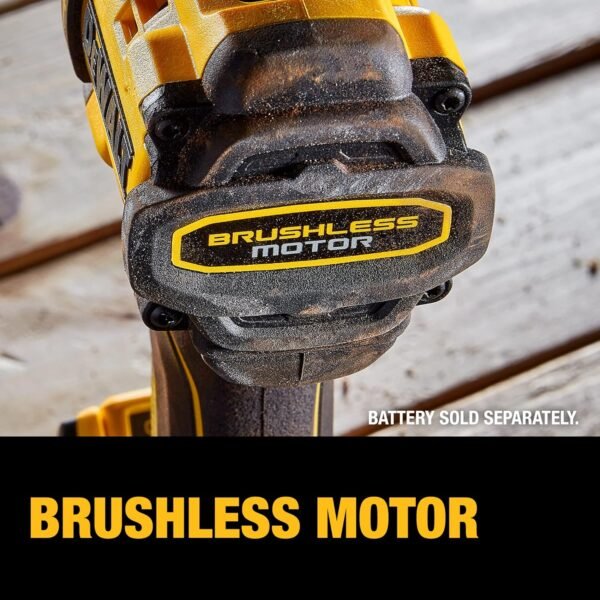

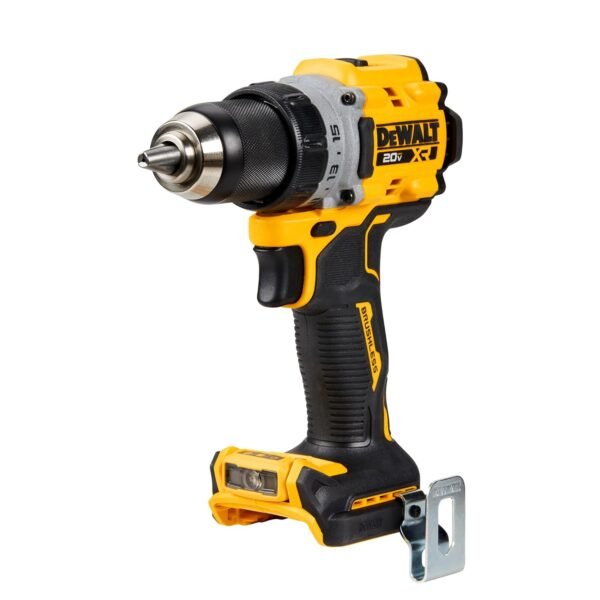

Testing the DEWALT 20V MAX XR Cordless Drill/Driver, 1/2-in, Bare Tool Only (DCD800B) has been quite an experience. This tool boasts a brushless motor designed to deliver professional-grade performance. The high-output brushless motor really stands out for handling heavy-duty drilling and fastening tasks, pushing up to 2,000 RPM. I noticed how this motor not only preserves battery life but also keeps the drill cool during extended use. The compact 6.37-inch size, which is half an inch shorter than some previous models, made it easier for me to work comfortably in tight spaces, a feature I appreciated during a recent home renovation project.

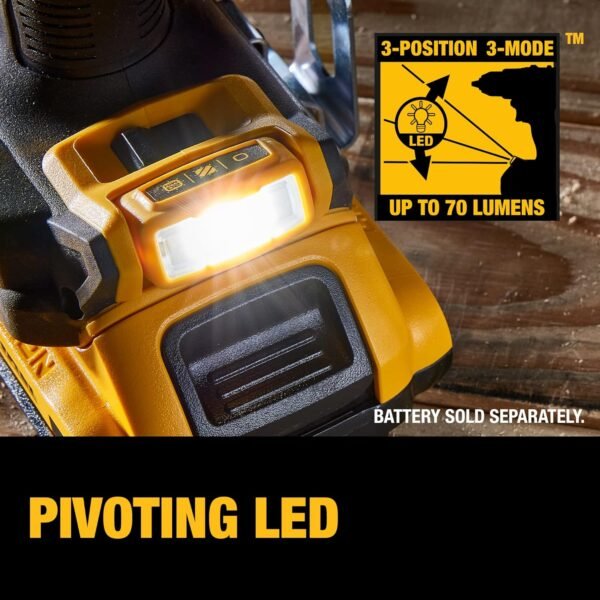

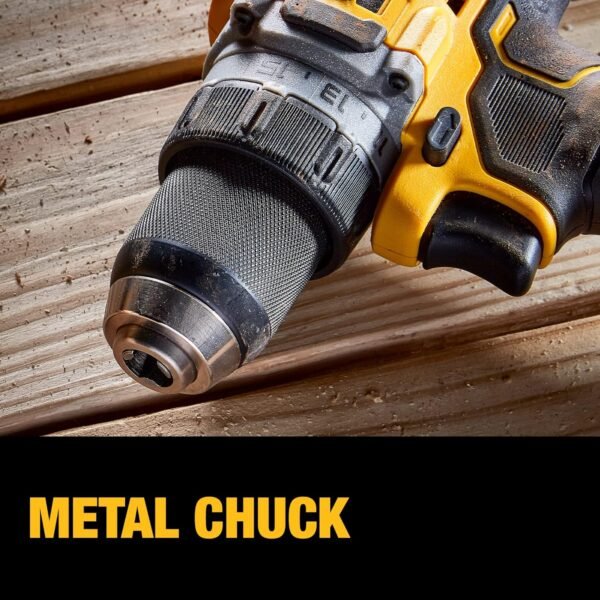

The 1/2-inch metal ratcheting chuck gives excellent bit retention, which means I rarely had to stop and fix a slipping bit. Plus, the variable speed trigger and two-speed settings (0-650 and 0-2,000 RPM) offer precision and control whether I’m working on delicate cabinetry or tougher construction materials. The adjustable 3-position LED with three modes and up to 70 lumens of brightness really helped illuminate dark corners, especially when I was screwing in fixtures under cabinets.

• Powerful brushless motor for efficiency and durability
• Compact size perfect for confined spaces
• Bright LED with adjustable modes
• Strong bit retention with metal chuck

Drawbacks to Consider

Despite the many strengths of this cordless drill, some limitations became apparent. The bare tool only packaging means you have to supply your own battery and charger, which adds to the overall investment if you’re not already equipped with compatible DEWALT batteries. The drill itself weighs around 3.17 pounds, which is decent, but I found that extended use sometimes caused mild wrist fatigue, especially when holding the tool overhead for longer periods.

Another downside is the lack of included batteries or a case, which can be a hassle for someone expecting an all-in-one purchase. Additionally, the maximum drilling capacity in wood is 38 millimeters, and 12.7 millimeters in metal, which is pretty standard but might limit some heavier-duty applications. Lastly, the belt hook feels a bit flimsy and might not hold up well under heavy use.

• No battery or charger included
• Slightly heavy for prolonged overhead work
• Limited drilling capacity for larger jobs
• Belt hook quality could be improved

Design and Ergonomics

The drill’s classic yellow and black DEWALT color scheme looks professional and stands out on any worksite. The blend of materials used feels solid yet balanced, with a brushed finish that resists fingerprints and scratches. The grip is comfortable, featuring a slightly textured rubber that prevented slipping even when my hands were sweaty or dirty from work.

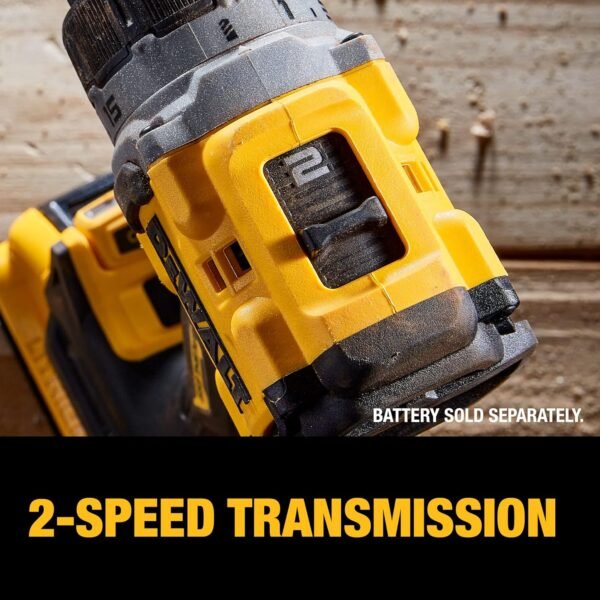

I appreciated the tool’s rectangular shape and compact dimensions (8.78″ length, 3.31″ width, and 6.89″ height), which made it easier to maneuver in cramped spaces, like behind kitchen cabinets or inside wall studs. The variable speed and two-speed gearbox give a smooth transition between slow, high-torque tasks and faster drilling needs. This versatility made the drill suitable for everything from assembling furniture to drilling through metal brackets.

Battery Compatibility and Power Source

Since this drill is a bare tool, it requires a compatible 20V Lithium-Ion battery to operate. I used both the standard DCB205 battery and the DCBP034 POWERSTACK battery. The latter offers up to 40% more usable watts out (UWO) compared to older models, which translates into longer runtime and better power delivery. This feature was especially noticeable when I was drilling into tougher materials like hardwood and metal.

Charging times and battery life heavily depend on the battery you pair with this drill. While the tool itself is rated at 20 amps and 300 watts of maximum power, the real-world performance feels efficient and reliable for most DIY and professional jobs. However, if you’re looking to get the most out of this drill, investing in the newer POWERSTACK battery technology is worth considering.

Performance in Real-World Use

The performance of this cordless drill/driver is where it really shines. The high-speed transmission combined with the variable trigger and two-speed settings allowed me to adapt quickly to different tasks. I switched from delicate screwdriving to heavy drilling without any hiccups.

The LED light with three modes, including a spotlight with a 20-minute shutoff, was unexpectedly handy during power outages or working in tight, poorly lit corners. I recall fixing a loose cabinet hinge under my sink where the light illuminated the small space perfectly, preventing any guesswork.

This tool delivered consistent torque and speed, making it a reliable partner for framing, deck building, and even simple household repairs. The metal ratcheting chuck firmly held bits of various sizes without slipping or losing grip, which is crucial for safety and efficiency.

Value Assessment

Considering the features packed into this cordless drill, the price is reasonable if you already own compatible batteries from the same brand. Its compact size, brushless motor, variable speed control, and bright LED add value that justifies the investment for serious hobbyists or professionals.

If you factor in the need to buy batteries and a charger separately, the overall cost can climb. However, the drill’s durability and versatility offer smart spending for those who require a dependable tool for daily or intensive use. It’s not the cheapest option out there, but the quality for price ratio feels fair given the brand’s reputation and the tool’s robust performance.

Product Comparisons

Compared to other popular cordless drills like the Makita XFD10R or the Bosch PS31-2A, this drill holds its own in power and ergonomics. The DEWALT drill’s brushless motor outperforms some competitors in efficiency and heat management, providing longer life and better battery conservation.

The LED lighting system with three modes is more advanced than many rivals, which often have a single, fixed-position light. However, some competing models come with batteries and chargers included, which might appeal to first-time buyers.

Makita tends to offer slightly lighter models with excellent balance but with less torque, while Bosch drills often feature innovative clutch systems for extra precision. The DEWALT, on the other hand, excels in high torque and rugged build quality, making it more suited for demanding construction tasks.

Benefits of Using This Cordless Drill

• Brushless motor technology for longer runtime and durability
• Compact and lightweight design for work in confined spaces
• Adjustable LED lighting with multiple modes enhances visibility
• Strong 1/2-inch metal ratcheting chuck for secure bit holding

This drill impressed me with its balance of power and portability, making it a versatile tool for various projects. The variable speed control and two-speed gearbox provide fine control that’s often missing in drills at this price point. I found it easy to switch from slow, torque-heavy tasks to faster drilling, adapting well to all my needs.
